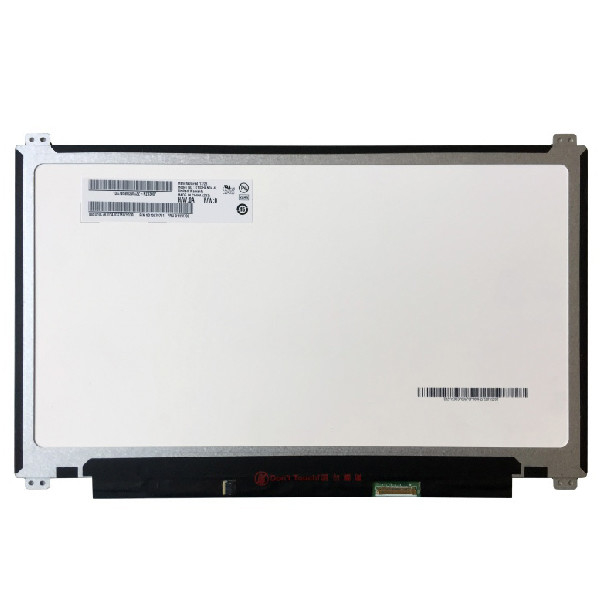

B133HAN04.4 13.3 inch 1920*1080 TFT-LCD SCREEN PANEL
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B133HAN04.4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B133HAN04.4 | Resolution: | 1920(RGB)×1080, FHD 166PPI |
|---|---|---|---|
| Active Area: | 293.76(W)×165.24(H) Mm | Luminance: | 250 Cd/m² (Typ.) |
| Contrast Ratio: | 800:1 (Typ.) (TM) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode: | 27 (Typ.)(Tr+Tf) | Used For: | Laptop |
| Signal Type: | EDP (2 Lanes), EDP1.2, 30 Pins Connector | Power Supply: | 3.3V (Typ.) |
Product Description
B133HAN04.4 13.3 inch 1920*1080 TFT-LCD SCREEN PANEL
B133HAN04.4 LCD Panel Product details :
| Brand | AUO |
| Model P/N | B133HAN04.4 |
| Diagonal Size | 13.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 166PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 293.472(W)×165.078(H) mm |
| Bezel Opening | - |
| Outline Size | 306.3(W)×195.29(H)×3.2(D) mm |
| Surface | Antiglare |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 27 (Typ.)(Tr+Tf) |
| Display Colors | 262K 46%NTSC |
| Lamp Type | WLED, 15K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop |
| Signal Interface | eDP (2 Lanes), eDP1.2, 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| B133HAN04.4 13.3 inch 1920*1080 TFT-LCD SCREEN PANEL | |
B133HAN04.4 LCD Display Product Quality Assurance:
Originality and Newness:
Our products are sourced directly from reputable manufacturers, ensuring their originality and newness.
Thorough Testing Process:
Before dispatching any goods, our dedicated team of engineers rigorously tests each B133HAN04.4 LCD display to ensure its functionality and performance.
Only products that pass our comprehensive testing process are approved for shipment to our customers.
Quality Assurance Guarantee:
We stand behind the quality of our products. Every B133HAN04.4 LCD display undergoes meticulous scrutiny to meet our high standards before being sent to you.
Rest Assured Buying Experience:
With our commitment to quality assurance, you can shop with confidence at our store.
Rest assured that the product you receive will meet your expectations and provide reliable performance.
B133HAN04.4 LCD Panel Shipping and Package :
B133HAN04.4 LCD Display Shipment:
Order Placement and Shipping Method:
Upon placing your order, kindly select your preferred shipping method and complete the payment, which includes the shipping fee.
Processing Time:
Once your payment is successfully processed, we will endeavor to dispatch your items within 3 days.
Delivery Timeframe:
While we strive to expedite the delivery process, please note that we cannot guarantee specific delivery times, especially for international shipments.
Differences in customs clearing times in individual countries may impact the speed at which your product is inspected and subsequently delivered.
We appreciate your understanding and patience regarding any potential delays that may arise during the customs clearance process.
B133HAN04.4 LCD Display Return & Warranty Policy:
Defective or Non-functional Product:
In the event that the product is defective or not functioning upon receipt, kindly contact us immediately for assistance.
30 Days Money Back or Replacement:
We offer a 30-day window for you to choose either a refund or a replacement, according to your preference.
Return Process for Defective Items:
Upon providing proof of the product's defectiveness or malfunction, please proceed with returning the item to us.
Upon receipt of the returned item, we will promptly dispatch a replacement unit to you.
Condition of Returned Items:
All returned items, along with their accessories, must be in their original and unused condition.
Warranty Label:
Each item is affixed with a warranty label. Please refrain from removing or tampering with this label.
This measure is taken to prevent errors and misunderstandings during the warranty process.
B133HAN04.4 LCD Panel FAQ :
Q: What happen if the lcd panel B133HAN04.4 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order B133HAN04.4 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
