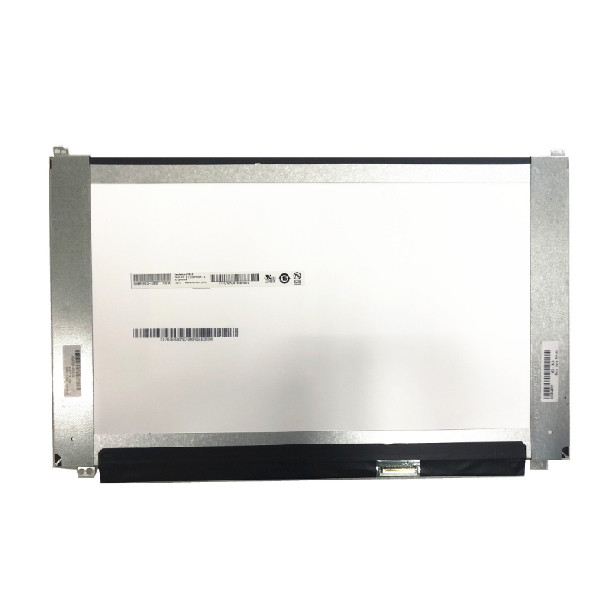

B133HAN04.B 13.3 inch 1920*1080 TFT-LCD SCREEN Display
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B133HAN04.B |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B133HAN04.B | Resolution: | 1920(RGB)×1080, FHD 166PPI |
---|---|---|---|
Active Area: | 293.76(W)×165.24(H) Mm | Light Source: | WLED, With LED Driver |
Contrast Ratio: | 800:1 (Typ.) (TM) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
Operating Mode: | 27 (Typ.)(Tr+Tf) | Used For: | Laptop |
Signal Type: | EDP (2 Lanes), 30 PinsConnector | Power Supply: | 3.3V (Typ.) |
Product Description
B133HAN04.B 13.3 inch 1920*1080 TFT-LCD SCREEN Display
B133HAN04.B LCD Panel Product details :
Brand | AUO |
Model P/N | B133HAN04.B |
Diagonal Size | 13.3" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1080, FHD 166PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 293.472(W)×165.078(H) mm |
Bezel Opening | - |
Luminance | - |
Contrast Ratio | 800:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 27 (Typ.)(Tr+Tf) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Operating Mode | AHVA, Normally Black, Transmissive |
Support Color | 262K |
Light Source | WLED, With LED Driver |
Form Style | Slim (PCBA Flat, T≤3.2mm) |
Designed For | Laptop |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | eDP (2 Lanes), 30 pinsConnector |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
B133HAN04.B 13.3 inch 1920*1080 TFT-LCD SCREEN Display |
B133HAN04.B LCD Panel Shipping and Package :
B133HAN04.B LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order B133HAN04.B ship?
A: The order are shipped within 1-2 working days after received the payment.
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel B133HAN04.B I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
