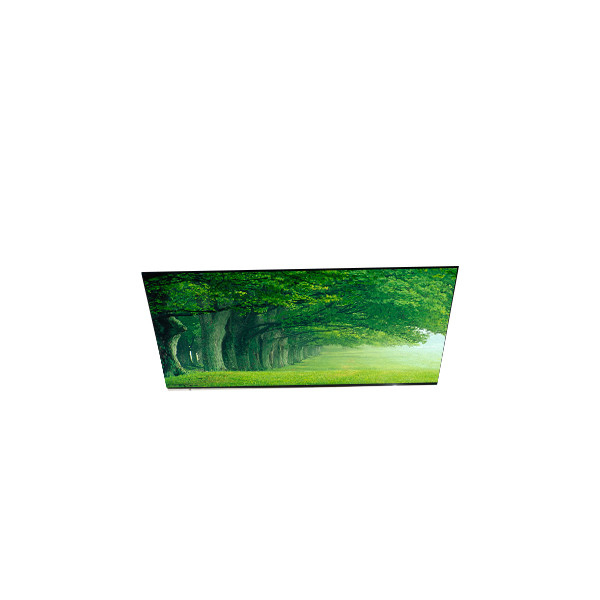

LA123WF7-SL05 LCD Module Display for LG123h1 TFT Touch
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LA123WF7-SL05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LA123WF7-SL05 | Diagonal Size: | 12.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×720 167PPI | Active Area: | 292.032(W)×109.512(H) Mm |
| Designed For: | Automotive Display | Outline Dim.: | 306.1(W)×130.2(H)×23.5(D) Mm |
| Contrast Ratio: | 1100:1 (Min.) (TM) | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Signal Type: | GMSL45 Pins Connector | Environment: | Operating Temperature: -40 ~ 85 °C; Storage Temperature: -40 ~ 95 °C; Vibration Level: 3.0G (29.4 M/s²) |
Product Description
LA123WF7-SL05 LCD Module Display for LG123h1 TFT Touch
LA123WF7-SL05 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LA123WF7-SL05 |
| Diagonal Size | 12.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×720 167PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 292.032(W)×109.512(H) mm |
| Bezel Opening | - |
| Outline Dim. | 306.1(W)×130.2(H)×23.5(D) mm |
| Luminance | 900 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Support Color | 16.7M 100% sRGB |
| Weight | 510/520g (Typ./Max.) |
| Frame Rate | 60Hz |
| Treatment | Anti Fingerprint + Antiglare, Hard coating (3H), Reflection 2.0% (Max.) |
| Contrast Ratio | 1100:1 (Min.) (TM) |
| Response Time | 20 (Max.)(Tr+Td) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Light Source | WLED, 20K hours , With LED Driver |
| Designed For | Automotive Display |
| Touch Panel | In-Cell Touch, I²C |
| Interface Type | GMSL45 pins Connector |
| Power Supply | 12V (Typ.)(With LED Driver) |
| Environment | Operating Temperature: -40 ~ 85 °C; Storage Temperature: -40 ~ 95 °C; Vibration Level: 3.0G (29.4 m/s²) |
| LA123WF7-SL05 LCD Module Display for LG123h1 TFT Touch | |
LA123WF7-SL05 LCD Screen Notice:
Before placing your order, we kindly request you to carefully review and confirm whether the screen size, resolution, backlight type, interface type, and location are compatible with your laptop. If you are unsure or have any questions, please feel free to reach out to us for assistance.
To ensure prompt delivery, please provide us with your accurate contact details.
If you wish for us to declare a lower value to potentially reduce customs taxes, please inform us accordingly. However, please note that by doing so, you accept full responsibility for any associated risks.
LA123WF7-SL05 LCD Panel Shipping and Package :
LA123WF7-SL05 LCD Screen International Orders:
The buyer assumes responsibility for all customs fees and import taxes associated with international orders.
International orders may experience extended delivery times due to customs processing delays.
When shipping to Japan or South Korea via FedEx or DHL, the actual price of the item will be declared. Additionally, recipients in South Korea must provide a customs clearance serial number, for instance: "P123123456789". Please ensure to furnish us with the customs clearance serial number.
LA123WF7-SL05 LCD Screen About Item and Shipping Price:
For products that are seldom or never sold, the listed item price may not be accurate. Please contact us for an updated and precise quote.
Shipping prices to remote countries or islands may vary significantly. Kindly reach out to us for an accurate shipping quote tailored to your location.
LA123WF7-SL05 LCD Panel FAQ :
Q: How to make payment of LA123WF7-SL05 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of LA123WF7-SL05 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of LA123WF7-SL05 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods LA123WF7-SL05 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
