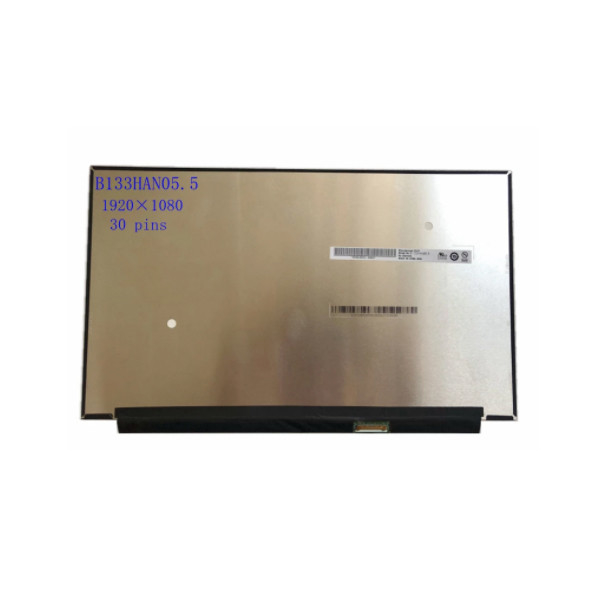

B133HAN05.5 13.3 inch 1920*1080 LCD SCREEN Display Module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B133HAN05.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B133HAN05.5 | Resolution: | 1920(RGB)×1080, FHD 166PPI |
|---|---|---|---|
| Active Area: | 293.76(W)×165.24(H) Mm | Luminance: | 300 Cd/m² (Typ.) |
| Contrast Ratio: | 800 : 1 (Typ.) (TM) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Response Time: | 27 (Max.)(Tr+Td) Ms | Used For: | Laptop |
| Signal Type: | EDP (2 Lanes), EDP1.3, Connector30 Pins | Power Supply: | 3.3V (Typ.) |
Product Description
B133HAN05.5 13.3 inch 1920*1080 LCD SCREEN Display Module
B133HAN05.5 LCD Panel Product details :
| Brand | AUO |
| Model P/N | B133HAN05.5 |
| Diagonal Size | 13.3" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 166PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 293.76(W)×165.24(H) mm |
| Bezel Opening | - |
| Outline (mm) | 299.46×186.65×2.2 (H×V×D) |
| Treatment | Glare (Haze 0%) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 27 (Max.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AHVA, Normally Black, Transmissive |
| Color Depth | 262K 100%sRGB |
| Backlight | WLED, 15K hours, With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes), eDP1.3, Connector30 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B133HAN05.5 13.3 inch 1920*1080 LCD SCREEN Display Module | |
B133HAN05.5 LCD Display Product Quality Assurance:
Originality and Newness:
Our products are sourced directly from reputable manufacturers, ensuring their originality and newness.
Thorough Testing Process:
Before dispatching any goods, our dedicated team of engineers rigorously tests each B133HAN05.5 LCD display to ensure its functionality and performance.
Only products that pass our comprehensive testing process are approved for shipment to our customers.
Quality Assurance Guarantee:
We stand behind the quality of our products. Every B133HAN05.5 LCD display undergoes meticulous scrutiny to meet our high standards before being sent to you.
Rest Assured Buying Experience:
With our commitment to quality assurance, you can shop with confidence at our store.
Rest assured that the product you receive will meet your expectations and provide reliable performance.
B133HAN05.5 LCD Panel Shipping and Package :
B133HAN05.5 LCD Display Shipment:
Order Placement and Shipping Method:
Upon placing your order, kindly select your preferred shipping method and complete the payment, which includes the shipping fee.
Processing Time:
Once your payment is successfully processed, we will endeavor to dispatch your items within 3 days.
Delivery Timeframe:
While we strive to expedite the delivery process, please note that we cannot guarantee specific delivery times, especially for international shipments.
Differences in customs clearing times in individual countries may impact the speed at which your product is inspected and subsequently delivered.
We appreciate your understanding and patience regarding any potential delays that may arise during the customs clearance process.
B133HAN05.5 LCD Display Return & Warranty Policy:
Defective or Non-functional Product:
In the event that the product is defective or not functioning upon receipt, kindly contact us immediately for assistance.
30 Days Money Back or Replacement:
We offer a 30-day window for you to choose either a refund or a replacement, according to your preference.
Return Process for Defective Items:
Upon providing proof of the product's defectiveness or malfunction, please proceed with returning the item to us.
Upon receipt of the returned item, we will promptly dispatch a replacement unit to you.
Condition of Returned Items:
All returned items, along with their accessories, must be in their original and unused condition.
Warranty Label:
Each item is affixed with a warranty label. Please refrain from removing or tampering with this label.
This measure is taken to prevent errors and misunderstandings during the warranty process.
B133HAN05.5 LCD Panel FAQ :
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long will I receive my goods of lcd B133HAN05.5 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: When will my order B133HAN05.5 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
