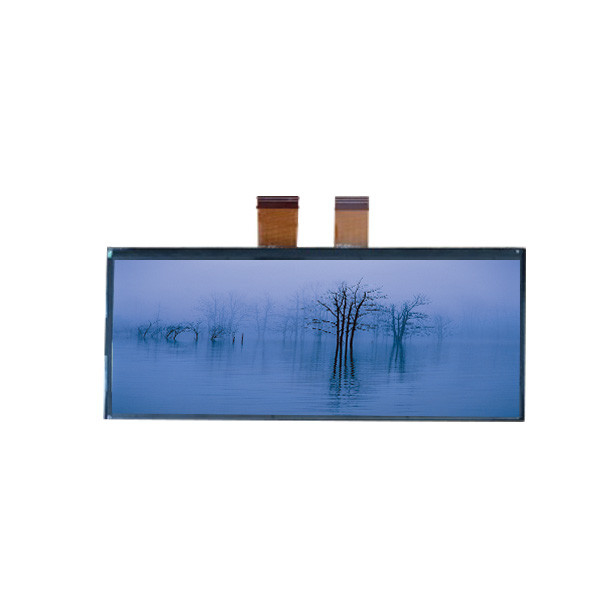

LA123WF4-SR03 for LG Display 1920*720 12.3 inch TFT LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LA123WF4-SR03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LA123WF4-SR03 | Diagonal Size: | 12.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×720 167PPI | Active Area: | 292.032(W)×109.512(H) Mm |
| Luminance: | 600 Cd/m² (Min.) | Outline Dim.: | 310(H)×128(V)×10.75(D) Mm |
| Contrast Ratio: | 800:1 (Min.) (TM) | Weight: | 385/400g (Typ./Max.) |
| Signal Type: | RSDS (2 Channel), 110 PinsFPC | Environment: | Operating Temperature: -40 ~ 85 °C; Storage Temperature: -40 ~ 95 °C; Vibration Level: 3.0G (29.4 M/s²) |
Product Description
LA123WF4-SR03 for LG Display 1920*720 12.3 inch TFT LCD Module
LA123WF4-SR03 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LA123WF4-SR03 |
| Diagonal Size | 12.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×720 167PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 292.032(W)×109.512(H) mm |
| Bezel Opening | 296.03(W)×113.5(H) mm |
| Outline Dim. | 310(H)×128(V)×10.75(D) mm |
| Treatment | Hard coating |
| Luminance | 600 cd/m² (Min.) |
| Contrast Ratio | 800:1 (Min.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Max.)(G to G), 25 (Typ.)(MPRT) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M 77%NTSC |
| Light Source | WLED [11S4P], 10K hours, W/O Driver |
| Weight | 385/400g (Typ./Max.) |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | RSDS (2 Channel), 110 pinsFPC |
| Power Supply | 3.3/13.0V (Typ.)(VCC/VDD) |
| Environment | Operating Temperature: -40 ~ 85 °C; Storage Temperature: -40 ~ 95 °C; Vibration Level: 3.0G (29.4 m/s²) |
| LA123WF4-SR03 for LG Display 1920*720 12.3 inch TFT LCD Module | |
LA123WF4-SR03 LCD Screen Notice:
Before placing your order, we kindly request you to carefully review and confirm whether the screen size, resolution, backlight type, interface type, and location are compatible with your laptop. If you are unsure or have any questions, please feel free to reach out to us for assistance.
To ensure prompt delivery, please provide us with your accurate contact details.
If you wish for us to declare a lower value to potentially reduce customs taxes, please inform us accordingly. However, please note that by doing so, you accept full responsibility for any associated risks.
LA123WF4-SR03 LCD Panel Shipping and Package :
LA123WF4-SR03 LCD Screen International Orders:
The buyer assumes responsibility for all customs fees and import taxes associated with international orders.
International orders may experience extended delivery times due to customs processing delays.
When shipping to Japan or South Korea via FedEx or DHL, the actual price of the item will be declared. Additionally, recipients in South Korea must provide a customs clearance serial number, for instance: "P123123456789". Please ensure to furnish us with the customs clearance serial number.
LA123WF4-SR03 LCD Screen About Item and Shipping Price:
For products that are seldom or never sold, the listed item price may not be accurate. Please contact us for an updated and precise quote.
Shipping prices to remote countries or islands may vary significantly. Kindly reach out to us for an accurate shipping quote tailored to your location.
LA123WF4-SR03 LCD Panel FAQ :
Q: How can I trace my order of LA123WF4-SR03 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of LA123WF4-SR03 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of LA123WF4-SR03 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods LA123WF4-SR03?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
