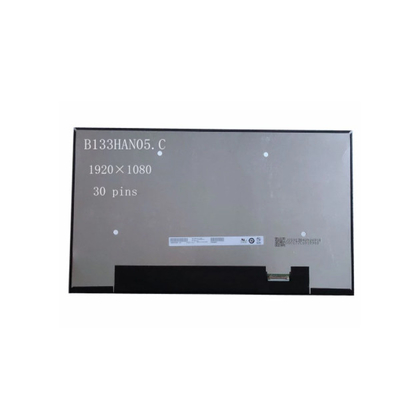

B133HAN05.C 13.3 inch 30pins 1920*1080 LCD Display Module
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B133HAN05.C |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B133HAN05.C | Resolution: | 1920(RGB)×1080, FHD 166PPI |
---|---|---|---|
Active Area: | 293.76(W)×165.24(H) Mm | Luminance: | 250 Cd/m² (Typ.) |
Contrast Ratio: | 1400 : 1 (Typ.) (TM) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
Response Time: | 27/35 (Typ./Max.)(Tr+Td) Ms | Used For: | Laptop |
Signal Type: | EDP (2 Lanes), EDP1.3, 30 Pins Connector | Power Supply: | 3.3V (Typ.) |
Product Description
B133HAN05.C 13.3 inch 30pins1920*1080 LCD Display Module
B133HAN05.C LCD Panel Product details :
Brand | AUO |
Model P/N | B133HAN05.C |
Diagonal Size | 13.3" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 1920(RGB)×1080, FHD 166PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 293.76(W)×165.24(H) mm |
Bezel Opening | - |
Outline Size | 298.96(W)×176.34(H)×4.6(D) mm |
Surface | Antiglare |
Brightness | 250 cd/m² (Typ.) |
Contrast Ratio | 1400:1 (Typ.) (TM) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Display Mode | AHVA, Normally Black, Transmissive |
Best View on | Symmetry |
Response Time | 27/35 (Typ./Max.)(Tr+Td) |
Display Colors | 16.7M 100%sRGB |
Lamp Type | WLED, 15K hours, With LED Driver |
Frequency | 60Hz |
Touch Screen | Without |
Shape Style | Slim (PCBA Bent, T≤3.0mm) |
Application | Laptop |
Signal Interface | eDP (2 Lanes), eDP1.3, 30 pins Connector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
B133HAN05.C 13.3 inch 30pins1920*1080 LCD Display Module |
B133HAN05.C LCD Panel Shipping and Package :
B133HAN05.C LCD Panel FAQ :
Q: What happen if the lcd panel B133HAN05.C I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
