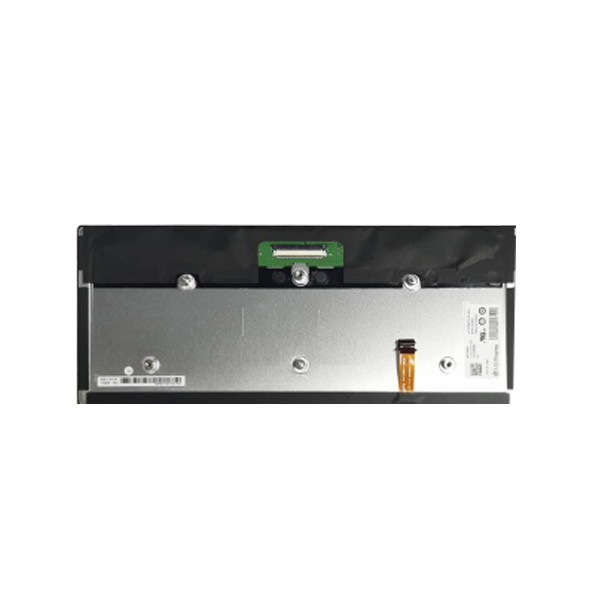

LA123WF4-SL02 12.3 inch LCD Display for LG123 TFT speedometer
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LA123WF4-SL02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LA123WF4-SL02 | Diagonal Size: | 12.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×720 167PPI | Active Area: | 292.032(W)×109.512(H) Mm |
| Luminance: | 650 Cd/m² (Typ.) | Outline Dim.: | 310.4(W)×128.9(H) Mm |
| Contrast Ratio: | 900:1 (Typ.) (TM) | Weight: | 481/496g (Typ./Max.) |
| Signal Type: | LVDS (2 Ch, 8-bit), 60 Pins Connector | Environment: | Operating Temp.: -40 ~ 85 °C ;Storage Temp.: -40 ~ 95 °C; Vibration Level: 3.0G (29.4 M/s²) |
Product Description
LA123WF4-SL02 12.3 inch LCD Display for LG123 TFT speedometer
LA123WF4-SL02 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LA123WF4-SL02 |
| Diagonal Size | 12.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×720 167PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 292.032(W)×109.512(H) mm |
| Bezel Opening | - |
| Outline Size | 310.4(W)×128.9(H) mm |
| Surface | Hard coating |
| Brightness | 650 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 86%NTSC |
| Lamp Type | 11S4PWLED, 10K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 481/496g (Typ./Max.) |
| Application | Automotive Display |
| Signal Interface | LVDS (2 ch, 8-bit), 60 pins Connector |
| Input Voltage | 3.3/13.0/20/-9.5V (Typ.)(VCC/VDD/VGH/VGL) |
| Environment | Operating Temp.: -40 ~ 85 °C ;Storage Temp.: -40 ~ 95 °C; Vibration Level: 3.0G (29.4 m/s²) |
| LA123WF4-SL02 12.3 inch LCD Display for LG123 TFT speedometer | |
LA123WF4-SL02 LCD Screen Notice:
Before placing your order, we kindly request you to carefully review and confirm whether the screen size, resolution, backlight type, interface type, and location are compatible with your laptop. If you are unsure or have any questions, please feel free to reach out to us for assistance.
To ensure prompt delivery, please provide us with your accurate contact details.
If you wish for us to declare a lower value to potentially reduce customs taxes, please inform us accordingly. However, please note that by doing so, you accept full responsibility for any associated risks.
LA123WF4-SL02 LCD Panel Shipping and Package :
LA123WF4-SL02 LCD Screen International Orders:
The buyer assumes responsibility for all customs fees and import taxes associated with international orders.
International orders may experience extended delivery times due to customs processing delays.
When shipping to Japan or South Korea via FedEx or DHL, the actual price of the item will be declared. Additionally, recipients in South Korea must provide a customs clearance serial number, for instance: "P123123456789". Please ensure to furnish us with the customs clearance serial number.
LA123WF4-SL02 LCD Screen About Item and Shipping Price:
For products that are seldom or never sold, the listed item price may not be accurate. Please contact us for an updated and precise quote.
Shipping prices to remote countries or islands may vary significantly. Kindly reach out to us for an accurate shipping quote tailored to your location.
LA123WF4-SL02 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of LA123WF4-SL02 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of LA123WF4-SL02 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of LA123WF4-SL02 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods LA123WF4-SL02 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
