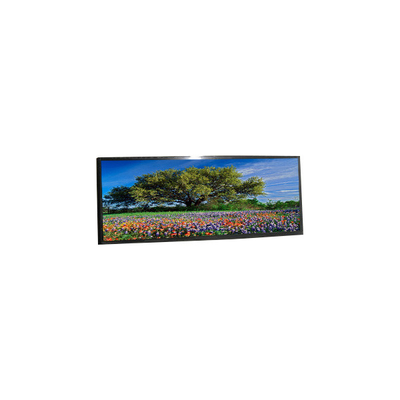

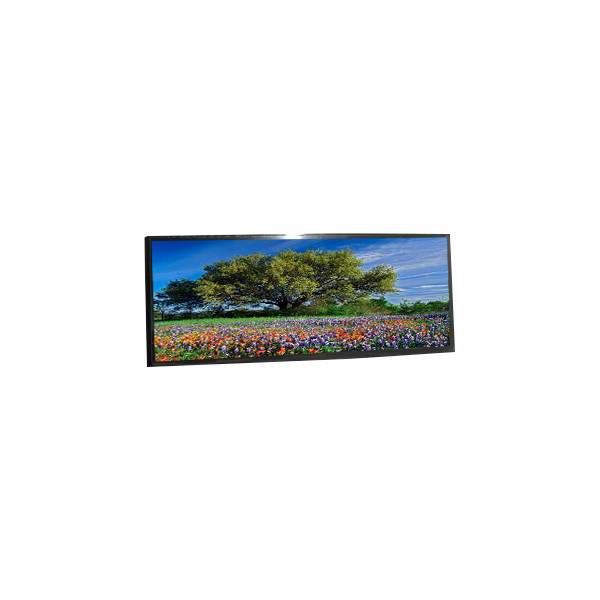

LA123WF1-SL02 12.3 inch LCD Car Navigation for LG123 speedometer
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LA123WF1-SL02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LA123WF1-SL02 | Diagonal Size: | 12.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×720 167PPI | Active Area: | 292.032(W)×109.512(H) Mm |
| Luminance: | 650 Cd/m² (Min.) | Outline Dim.: | 310(W)×128(H)×20.6(D) Mm |
| Contrast Ratio: | 800:1 (Min.) (TM) | Weight: | 395/405g (Typ./Max.) |
| Signal Type: | LVDS (2 Ch, 8-bit), 60 PinsFPC | Environment: | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 M/s²) |
Product Description
LA123WF1-SL02 12.3 inch LCD Car Navigation for LG123 speedometer
LA123WF1-SL02 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LA123WF1-SL02 |
| Diagonal Size | 12.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×720 167PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 292.032(W)×109.512(H) mm |
| Bezel Opening | - |
| Outline Dim. | 310(W)×128(H)×20.6(D) mm |
| Treatment | Hard coating |
| Luminance | 650 cd/m² (Min.) |
| Contrast Ratio | 800:1 (Min.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M |
| Light Source | WLED [12S4P], 10K hours, W/O Driver |
| Weight | 395/405g (Typ./Max.) |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit), 60 pinsFPC |
| Power Supply | 3.3/13.0V (Typ.)(VCC/VDD) |
| Environment | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| LA123WF1-SL02 12.3 inch LCD Car Navigation for LG123 speedometer | |
LA123WF1-SL02 LCD Screen Notice:
Before placing your order, we kindly request you to carefully review and confirm whether the screen size, resolution, backlight type, interface type, and location are compatible with your laptop. If you are unsure or have any questions, please feel free to reach out to us for assistance.
To ensure prompt delivery, please provide us with your accurate contact details.
If you wish for us to declare a lower value to potentially reduce customs taxes, please inform us accordingly. However, please note that by doing so, you accept full responsibility for any associated risks.
LA123WF1-SL02 LCD Panel Shipping and Package :
LA123WF1-SL02 LCD Screen International Orders:
The buyer assumes responsibility for all customs fees and import taxes associated with international orders.
International orders may experience extended delivery times due to customs processing delays.
When shipping to Japan or South Korea via FedEx or DHL, the actual price of the item will be declared. Additionally, recipients in South Korea must provide a customs clearance serial number, for instance: "P123123456789". Please ensure to furnish us with the customs clearance serial number.
LA123WF1-SL02 LCD Screen About Item and Shipping Price:
For products that are seldom or never sold, the listed item price may not be accurate. Please contact us for an updated and precise quote.
Shipping prices to remote countries or islands may vary significantly. Kindly reach out to us for an accurate shipping quote tailored to your location.
LA123WF1-SL02 LCD Panel FAQ :
Q: What happen if the lcd panel LA123WF1-SL02 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can you declared low value of my order about LA123WF1-SL02 ?
A: Yes , we can . But you need to leave message to us before shipping.
Q: When will my order LA123WF1-SL02 ?
A: The order are shipped within 1-2 working days after received the payment.
Q: How to order LG LA123WF1-SL02 ?
A: We accept T/T , PAYPAL , WESTERN UNION .
