B133HAT02.5 13.3 inch 1920*1080 lcd Screen module
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B133HAT02.5 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B133HAT02.5 | Resolution: | 1920(RGB)×1080, FHD 166PPI |
---|---|---|---|
Active Area: | 293.472(W)×165.078(H) Mm | Luminance: | 300 Cd/m² (Typ.) |
Contrast Ratio: | 800:1 (Typ.) (TM) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
Response Time: | 25 (Typ.)(Tr+Td) | Used For: | Laptop |
Signal Type: | EDP (2 Lanes), EDP1.330 Pins Connector | Power Supply: | 3.3V (Typ.) |
Product Description

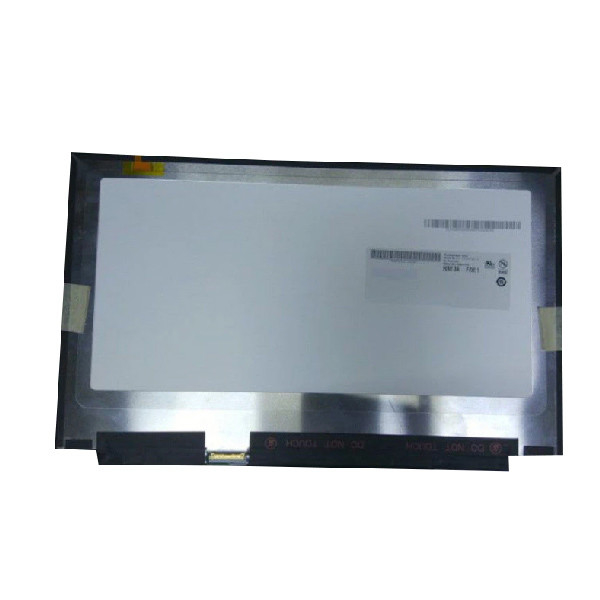

B133HAT02.5 13.3 inch 1920*1080 lcd Screen module
B133HAT02.5 LCD Panel Product details :
Brand | AUO |
Model P/N | B133HAT02.5 |
Diagonal Size | 13.3" |
Panel Type | a-Si TFT-LCD, Assembly |
Resolution | 1920(RGB)×1080, FHD 166PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 293.472(W)×165.078(H) mm |
Bezel Opening | - |
Outline Dim. | 318(W)×206.45(H)×3.8(D) mm |
Luminance | 300 cd/m² (Typ.) |
View Direction | Symmetry |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Support Color | 262K 72% NTSC |
Form Style | - |
Frame Rate | 60Hz |
Treatment | Hard coating (9H) |
Contrast Ratio | 800:1 (Typ.) (TM) |
Response Time | 25 (Typ.)(Tr+Td) |
Operating Mode | - |
Light Source | WLED, 15K hours , With LED Driver |
Designed For | Laptop |
Touch Panel | PCAP, Optical Bonding, USB |
Interface Type | eDP (2 Lanes), eDP1.330 pins Connector |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
B133HAT02.5 13.3 inch 1920*1080 lcd Screen module |
B133HAT02.5 LCD Panel Shipping and Package :
B133HAT02.5 LCD Panel FAQ :
Q: How long will I receive my goods B133HAT02.5 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of B133HAT02.5 ?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of B133HAT02.5 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty ?
A: We offer 90days warranty .
