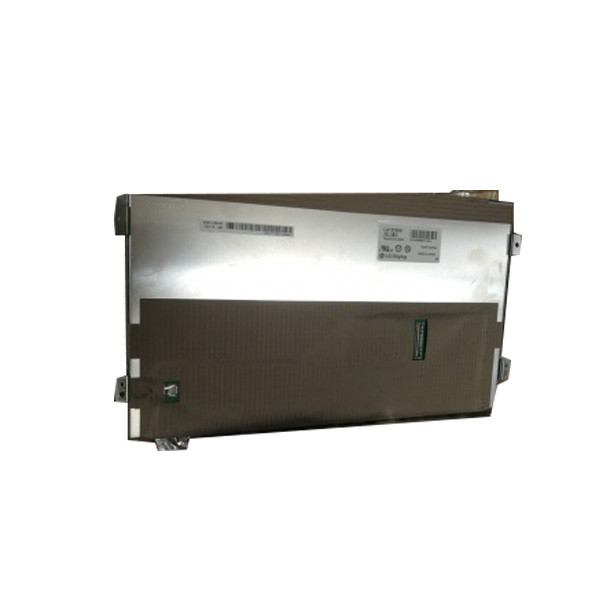

LA121WH1-SL02 New 12.1 inch 1280*720 LCD Screen display
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LA121WH1-SL02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LA121WH1-SL02 | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×720, WXGA 121PPI | Active Area: | 266.88(W)×150.12(H) Mm |
| Luminance: | 500 (Typ.)(cd/m²) | Viewing Angle: | 80/80/80/80 (Min.)(CR≥10) |
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Response: | 17/13 (Max.)(Tr+Td) Ms |
| Signal Type: | LVDS (1 Ch, 8-bit), 40 Pins Connector | Environment: | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
Product Description
LA121WH1-SL02 New 12.1 inch 1280*720 LCD Screen display
LA121WH1-SL02 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LA121WH1-SL02 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×720, WXGA 121PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 266.88(W)×150.12(H) mm |
| Bezel Opening | 269.65(W)×152.55(H) mm |
| Outline(mm) | 287.4(W)×163.45(H)×9.51(D) |
| Luminance | 500 (Typ.)(cd/m²) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 62% NTSC |
| Mass | 417±5g |
| Refresh Rate | 60Hz |
| Treatment | Antiglare |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Work Mode | IPS, Normally Black, Transmissive |
| Response | 17/13 (Max.)(Tr+Td) ms |
| Backlight | 8S3P WLED , 10K hours , No Driver |
| Used for | Automotive Display |
| Touchscreen | Without |

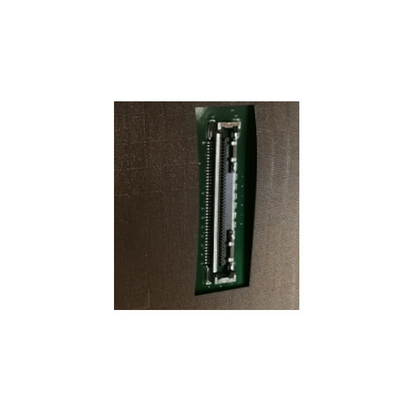

| Signal Type | LVDS (1 ch, 8-bit), 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
| LA121WH1-SL02 New 12.1 inch 1280*720 LCD Screen display | |
LA121WH1-SL02 LCD Screen Notice:
Before placing your order, we kindly request you to carefully review and confirm whether the screen size, resolution, backlight type, interface type, and location are compatible with your laptop. If you are unsure or have any questions, please feel free to reach out to us for assistance.
To ensure prompt delivery, please provide us with your accurate contact details.
If you wish for us to declare a lower value to potentially reduce customs taxes, please inform us accordingly. However, please note that by doing so, you accept full responsibility for any associated risks.
LA121WH1-SL02 LCD Panel Shipping and Package :
LA121WH1-SL02 LCD Screen International Orders:
The buyer assumes responsibility for all customs fees and import taxes associated with international orders.
International orders may experience extended delivery times due to customs processing delays.
When shipping to Japan or South Korea via FedEx or DHL, the actual price of the item will be declared. Additionally, recipients in South Korea must provide a customs clearance serial number, for instance: "P123123456789". Please ensure to furnish us with the customs clearance serial number.
LA121WH1-SL02 LCD Screen About Item and Shipping Price:
For products that are seldom or never sold, the listed item price may not be accurate. Please contact us for an updated and precise quote.
Shipping prices to remote countries or islands may vary significantly. Kindly reach out to us for an accurate shipping quote tailored to your location.
LA121WH1-SL02 LCD Panel FAQ :
Q: How long is the warranty of LA121WH1-SL02 ?
A: 90days warranty .
Q: How can I trace my order of LA121WH1-SL02 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods LA121WH1-SL02 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders for LA121WH1-SL02 ?
A: Of course!sample order is welcome !
