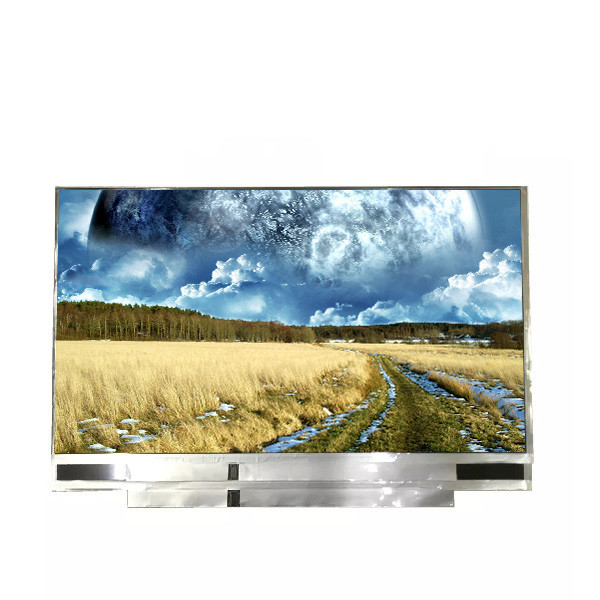

B133XN04 13.3 inch 1024*768 lcd Screen panel
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B133XN04 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B133XN04 | Resolution: | 1024(RGB)×768, XGA 96PPI |
---|---|---|---|
Active Area: | 270.336(W)×202.752(H) Mm | Luminance: | 150 Cd/m² (Typ.) |
Contrast Ratio: | 200 : 1 (Typ.) (TM) | Viewing Angle: | 40/40/10/30 (Min.)(CR≥10) |
Color Depth: | 262K 45%NTSC | Used For: | Laptop |
Signal Type: | LVDS (1 Ch, 6-bit), 20 Pins Connector | Voltage Supply: | 3.3V (Typ.) |
Product Description
B133XN04 13.3 inch 1024*768 lcd Screen panel
B133XN04 LCD Panel Product details :
Brand | AU Optronics |
Model P/N | B133XN04 |
Diagonal Size | 13.3" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1024(RGB)×768, XGA 96PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 270.336(W)×202.752(H) mm |
Bezel Opening | 274.3(W)×205.8(H) mm |
Outline(mm) | 284 × 214.5× 5.5 (H×V×D) |
Treatment | - |
Luminance | 150 cd/m² (Typ.) |
Contrast Ratio | 200 : 1 (Typ.) (TM) |
Viewing Angle | 40/40/10/30 (Min.)(CR≥10) |
Response | 20/30 (Typ.)(Tr/Td) ms |
Good View at | 6 o'clock |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 262K 45%NTSC |
Backlight | 1 pcsCCFL, No Driver |
Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
Used for | Laptop |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | LVDS (1 ch, 6-bit), 20 pins Connector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
B133XN04 13.3 inch 1024*768 lcd Screen panel |
B133XN04 LCD Panel Shipping and Package :
B133XN04 LCD Panel FAQ :
Q: How long will I receive my goods B133XN04 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of B133XN04 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How to make payment of B133XN04 ?
A: We accept T/T , Paypal , western union .
