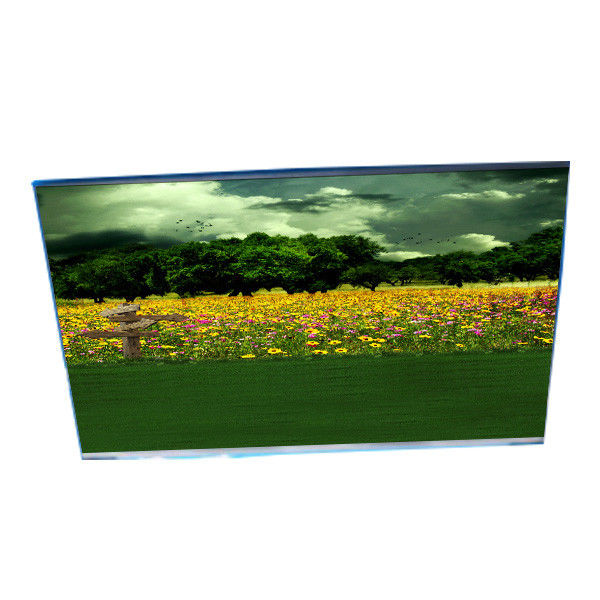

LA102WH2-SL01 LCD Screen 10.2 inch 1280*720 LCD display
Product Details:
Place of Origin: | China |
Brand Name: | LG Display |
Model Number: | LA102WH2-SL01 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LA102WH2-SL01 | Diagonal Size: | 10.2" |
---|---|---|---|
Resolution: | 1280(RGB)×720, WXGA 143PPI | Active Area: | 225.792(W)×127.008(H) Mm |
Bezel Opening: | 225.75(W)×126.874(H) Mm | Luminance: | 725 Cd/m² (Min.) |
Contrast Ratio: | 800:1 (Min.) (TM) | Response Time: | 30 (Max.)(Tr+Td) |
Designed For: | Automotive Display | Interface Type: | LVDS (1 Ch, 8-bit), 64 PinsFPC |
Product Description
LA102WH2-SL01 LCD Screen 10.2 inch 1280*720 LCD display
LA102WH2-SL01 LCD Panel Product details :
Brand | LG Display |
Model P/N | LA102WH2-SL01 |
Diagonal Size | 10.2" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1280(RGB)×720, WXGA 143PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 225.792(W)×127.008(H) mm |
Bezel Opening | 225.75(W)×126.874(H) mm |
Outline Dim. | 238.62(H)×141.5(V)mm |
Treatment | Hard coating (3H) |
Luminance | 725 cd/m² (Min.) |
Contrast Ratio | 800:1 (Min.) (TM) |
View Direction | Symmetry |
Response Time | 30 (Max.)(Tr+Td) |
Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
Operating Mode | IPS, Normally Black, Transmissive |
Support Color | 16.7M |
Light Source | WLED [10S4P], 10K hours, W/O Driver |
Weight | 303/313g (Typ./Max.) |
Designed For | Automotive Display |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | LVDS (1 ch, 8-bit), 64 pinsFPC |
Power Supply | 1.8/3.3/12.5/18.5/-7.5V (Typ.)(DVDD2/DVDD1/AVDD/VHG/VHL) |
Environment | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C ; Vibration Level: 3.16G (31.0 m/s²) |
LA102WH2-SL01 LCD Screen 10.2 inch 1280*720 LCD display |
Customer Service for LA102WH2-SL01 LCD Screen:
LA102WH2-SL01 LCD Panel Shipping and Package :
LA102WH2-SL01 LCD Panel FAQ :
Q: How can I trace my order of LA102WH2-SL01 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of LA102WH2-SL01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of LA102WH2-SL01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
