B133XTN01.6 HW1A 1366*768 13.3 inch LCD Screen
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B133XTN01.6 HW1A |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B133XTN01.6 HW1A | Resolution: | 1366(RGB)×768, WXGA 118PPI |
---|---|---|---|
Active Area: | 293.42(W)×164.97(H) Mm | Luminance: | 220 Cd/m² (Typ.) |
Contrast Ratio: | 400:1 (Typ.) (TM) | Response Time: | 8 (Typ.)(Tr+Td) |
Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) | Light Source: | WLED, 12K Hours, With LED Driver |
Designed For: | Laptop | Interface Type: | EDP (1 Lane), EDP1.2, 30 Pins Connector |
Product Description

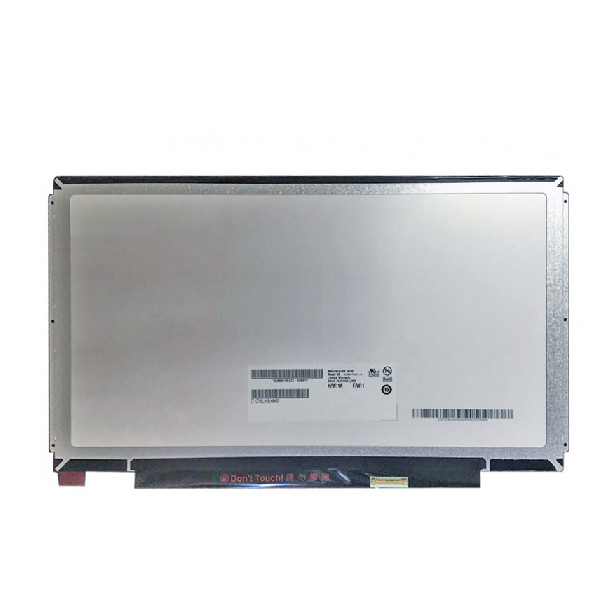

B133XTN01.6 HW1A 1366*768 13.3 inch LCD Screen
B133XTN01.6 HW1A LCD Panel Product details :
Brand | AUO |
Model P/N | B133XTN01.6 HW1A |
Diagonal Size | 13.3" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1366(RGB)×768, WXGA 118PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 293.42(W)×164.97(H) mm |
Bezel Opening | - |
Outline(mm) | 314.1 × 188.7× 3 (H×V×D) |
Treatment | Antiglare, Hard coating (3H), Reflection 4.3% (Typ.) |
Luminance | 220 cd/m² (Typ.) |
Contrast Ratio | 400 : 1 (Typ.) (TM) |
Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
Response | 8 (Typ.)(Tr+Td) ms |
Good View at | 6 o'clock |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 262K 45%NTSC |
Backlight | WLED, 12K hours, With LED Driver |
Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
Used for | Laptop |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | eDP (1 Lane), eDP1.2, 30 pins Connector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
B133XTN01.6 HW1A 1366*768 13.3 inch LCD Screen |
B133XTN01.6 HW1A LCD Panel Shipping and Package :
B133XTN01.6 HW1A LCD Panel FAQ :
Q: How can I trace my order of B133XTN01.6 HW1A ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of B133XTN01.6 HW1A ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of B133XTN01.6 HW1A ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of B133XTN01.6 HW1A ?
A: Of course!If you make a large order, we will give you a discount.
