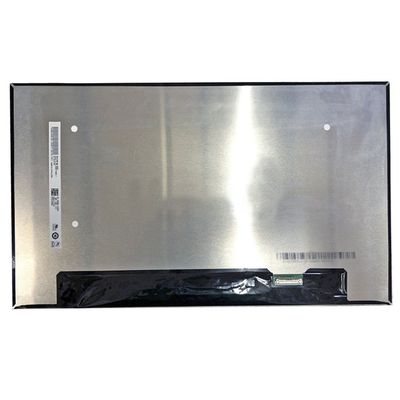

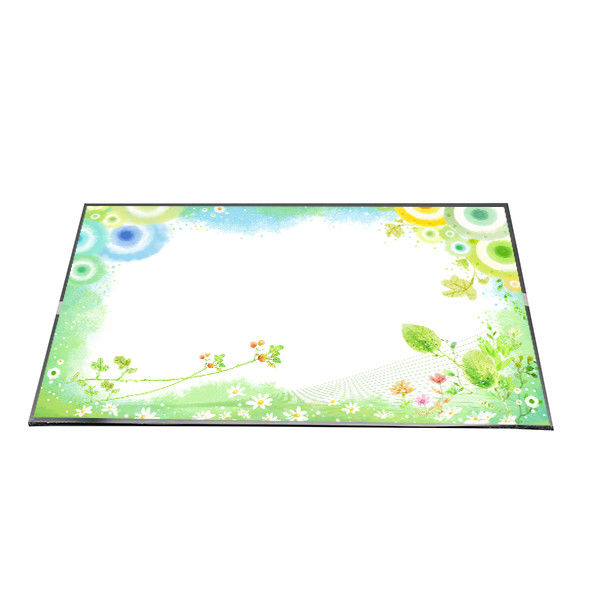

B133XTN03.0 13.3 INCH 1366*768 LCD Screen Display panel
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B133XTN03.0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B133XTN03.0 | Resolution: | 1366(RGB)×768, WXGA 118PPI |
---|---|---|---|
Active Area: | 293.83(W)×165.2(H) Mm | Color Depth: | 262K 45%NTSC |
Contrast Ratio: | 500:1 (Typ.) (TM) | Response Time: | 8 (Typ.)(Tr+Td) |
Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) | Light Source: | WLED, 15K Hours, With LED Driver |
Designed For: | Laptop | Interface Type: | EDP (2 Lanes), EDP1.2, 30 PinsConnector |
Product Description
B133XTN03.0 13.3 inch 1366*768 laptop lcd screen Display
B133XTN03.0 LCD Panel Product details :
Brand | AUO |
Model P/N | B133XTN03.0 1 Compatible |
Diagonal Size | 13.3" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1366(RGB)×768, WXGA 118PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 293.83(W)×165.2(H) mm |
Bezel Opening | - |
Outline Dim. | 300.26(H)×187.27(V)×3(D)mm |
Treatment | Glare (Haze 0%) |
Luminance | 220 cd/m² (Typ.) |
Contrast Ratio | 500:1 (Typ.) (TM) |
View Direction | 6 o'clock |
Response Time | 8 (Typ.)(Tr+Td) |
Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
Operating Mode | TN, Normally White, Transmissive |
Support Color | 262K 45%NTSC |
Light Source | WLED, 15K hours, With LED Driver |
Form Style | Slim (PCBA Flat, T≤3.2mm) |
Designed For | Laptop |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | eDP (2 Lanes), eDP1.2, 30 pinsConnector |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
B133XTN03.0 13.3 inch 1366*768 laptop lcd screen Display |
B133XTN03.0 LCD Panel Shipping and Package :
B133XTN03.0 LCD Panel FAQ :
Q: How can I trace my order of B133XTN03.0 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of B133XTN03.0 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of B133XTN03.0 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of B133XTN03.0 ?
A: Of course!If you make a large order, we will give you a discount.
