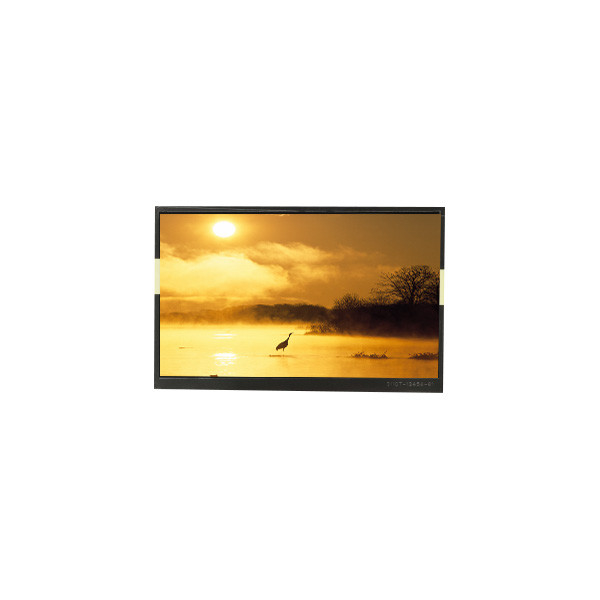

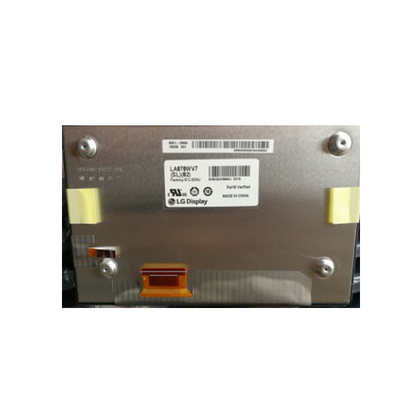

LA080WV5-SL01 for LG 8.0 Inch LCD Panel 800*480 LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LA080WV5-SL01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LA080WV5-SL01 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 116PPI | Active Area: | 174(W)×104.4(H) Mm |
| Outline Size: | 187(W)×120.3(H)×8.3(D) Mm | Brightness: | 585 Cd/m² (Typ.) |
| Application: | Automotive Display | Interface Type: | LVDS (1 Ch, 8-bit), 40 PinsFPC |
| Viewing Angle: | 89/89/89/89 (Min.)(CR≥10) | ||
Product Description
LA080WV5-SL01 for LG 8.0 Inch LCD Panel 800*480 LCD Display
LA080WV5-SL01 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LA080WV5-SL01 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 174(W)×104.4(H) mm |
| Bezel Opening | - |
| Outline Size | 187(W)×120.3(H)×8.3(D) mm |
| Brightness | 585 cd/m² (Typ.) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 65%NTSC |
| Frequency | 60Hz |
| Weight | 230/235g (Typ./Max.) |
| Surface | - |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | AH-IPS, Normally Black, Transmissive |
| Response Time | 30 (Max.)(Tr+Td) |
| Lamp Type | 6S3P WLED , 20K hours , Without Driver |
| Touch Screen | Without |
| Application | Automotive Display |
| Signal Interface | LVDS (1 ch, 8-bit), 40 pinsFPC |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -40 ~ 95 °C ;Storage Temp.: -40 ~ 95 °C; Vibration Level: 3.0G (29.4 m/s²) |
| LA080WV5-SL01 for LG 8.0 Inch LCD Panel 800*480 LCD Display | |
LA080WV5-SL01 LCD Display Note :
Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.
Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.
Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.
LA080WV5-SL01 LCD Panel Shipping and Package :
SHIPPING Information for LA080WV5-SL01 LCD Display :
We offer a variety of shipping options including Alibaba standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.
Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.
Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.
To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.
Reminder for LA080WV5-SL01 LCD Display Purchase :
Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.
To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.
LA080WV5-SL01 LCD Panel FAQ :
Q: Can You declare my order of LA080WV5-SL01 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of LA080WV5-SL01 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of LA080WV5-SL01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I order LA080WV5-SL01 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
