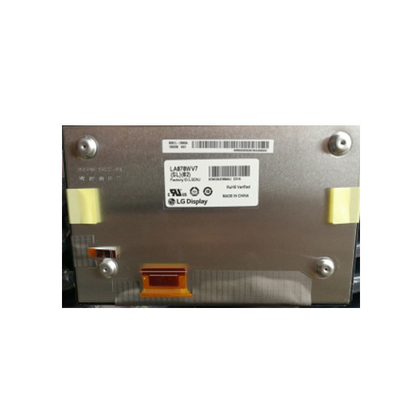

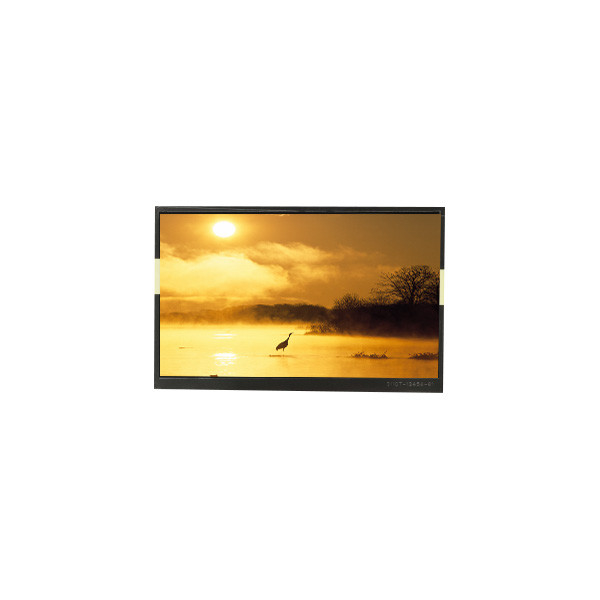

LA070WV7-SL02 7.0 inch 800*480 LCD Display Screen for Car GPS Navigation
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LA070WV7-SL02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LA070WV7-SL02 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 133PPI | Active Area: | 152.4(W)×91.44(H) Mm |
| Outline(mm): | 166.4(W)×106.2(H)×10.7(D) | Luminance: | 1000 (Typ.)(cd/m²) |
| Contrast Ratio: | 1100 : 1 (Typ.) (TM) | Application: | Outdoor High Brightness、Automotive Display |
| Viewing Angle: | 89/89/89/89 (Min.)(CR≥10) | Interface Type: | LVDS (1 Ch, 8-bit), 50 Pins FPC |
Product Description
LA070WV7-SL02 7.0 inch 800*480 LCD Display Screen for Car GPS Navigation
LA070WV7-SL02 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LA070WV7-SL02 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 158.4(W)×94.2(H) mm |
| Outline(mm) | 166.4(W)×106.2(H)×10.7(D) |
| Luminance | 1000 (Typ.)(cd/m²) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 65% NTSC |
| Mass | 162/167g (Typ./Max.) |
| Refresh Rate | 60Hz |
| Treatment | Antiglare (Haze 25%) |
| Contrast Ratio | 1100 : 1 (Typ.) (TM) |
| Work Mode | IPS, Normally Black, Transmissive |
| Response | 16/14 (Typ.)(Tr/Td) ms |
| Backlight | 6S3P WLED , 30K hours , No Driver |
| Used for | Outdoor High Brightness,Automotive Display |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit), 50 pins FPC |
| Voltage Supply | 3.3/13/18/-7.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 5.0G (49.0 m/s²) |
| LA070WV7-SL02 7.0 inch 800*480 LCD Display Screen for Car GPS Navigation | |
LA070WV7-SL02 LCD Display Note :
Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.
Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.
Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.
LA070WV7-SL02 LCD Panel Shipping and Package :
SHIPPING Information for LA070WV7-SL02 LCD Display :
We offer a variety of shipping options including Alibaba standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.
Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.
Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.
To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.
Reminder for LA070WV7-SL02 LCD Display Purchase :
Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.
To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.
LA070WV7-SL02 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of LA070WV7-SL02 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of LA070WV7-SL02 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of LA070WV7-SL02 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of LA070WV7-SL02 ?
A: Of course!sample order is welcome !
