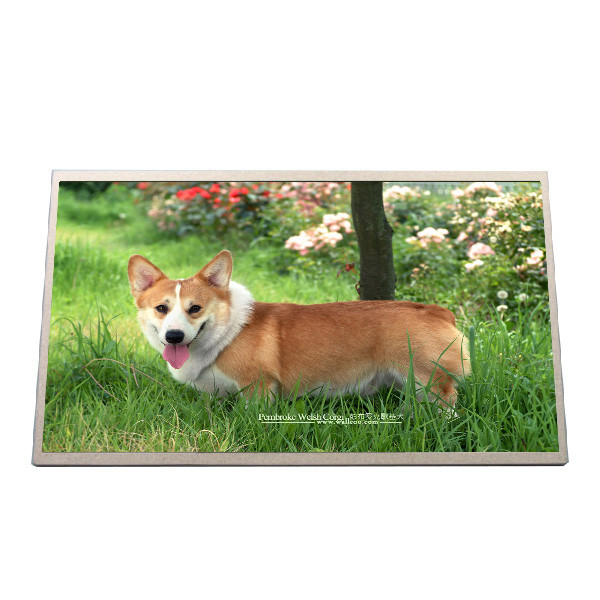

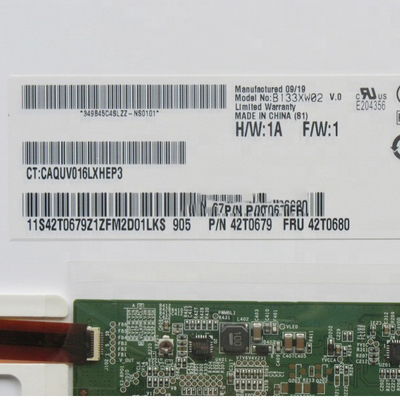

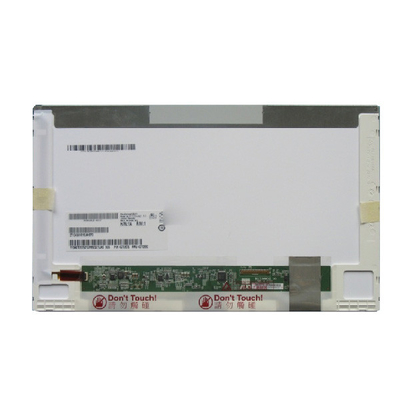

B133XW02 V0 LCD Display Screen LAPTOP 13.3 inch 1366*768
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B133XW02 V0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B133XW02 V0 | Resolution: | 1366(RGB)×768, WXGA 118PPI |
---|---|---|---|
Active Area: | 293.42(W)×164.97(H) Mm | Luminance: | 220 Cd/m² (Typ.) |
Contrast Ratio: | 500 : 1 (Typ.) (TM) | Operating Mode: | TN, Normally White, Transmissive |
Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) | Light Source: | WLED, 12K Hours, With LED Driver |
Designed For: | Laptop | Interface Type: | LVDS (1 Ch, 6-bit), 40 PinsConnector |
Product Description
B133XW02 V0 LCD Display Screen LAPTOP 13.3 inch 1366*768
B133XW02 V0 LCD Panel Product details :
Brand | AUO |
Model P/N | B133XW02 V0 1 Compatible |
Diagonal Size | 13.3" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1366(RGB)×768, WXGA 118PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 293.42(W)×164.97(H) mm |
Bezel Opening | 296.82(W)×168.37(H) mm |
Outline Size | 307.4(W)×183.1(H)×5.2(D) mm |
Treatment | Glare (Haze 0%), Hard coating (3H), Reflection 4.3% (Typ.) |
Luminance | 220 cd/m² (Typ.) |
Contrast Ratio | 500 : 1 (Typ.) (TM) |
Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
Response | 8 (Typ.)(Tr+Td) ms |
Good View at | 6 o'clock |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 262K 50%NTSC |
Backlight | WLED, 12K hours, With LED Driver |
Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
Used for | Laptop |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | LVDS (1 ch, 6-bit), 40 pinsConnector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
B133XW02 V0 LCD Display Screen LAPTOP 13.3 inch 1366*768 |
B133XW02 V0 LCD Panel Shipping and Package :
B133XW02 V0 LCD Panel FAQ :
Q: How long will I receive my goods B133XW02 V0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of B133XW02 V0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of B133XW02 V0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of B133XW02 V0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
