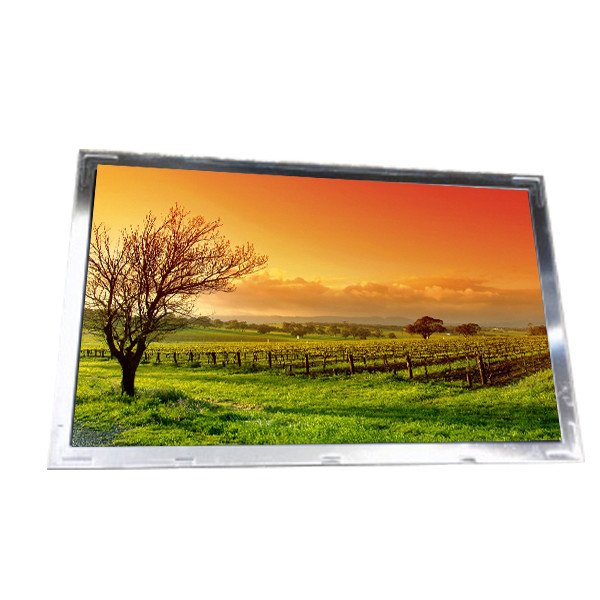

• LA070WV6-SL01 7.0 inch LCD Screen 800*480 LCD Display Module
LA070WV6-SL01 7.0 inch LCD Screen 800*480 LCD Display Module

LA070WV6-SL01 7.0 inch LCD Screen 800*480 LCD Display Module

Product Details:

Place of Origin: China
Brand Name: LG Display
Model Number: LA070WV6-SL01

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model Name: LA070WV6-SL01 Diagonal Size: 7.0"
Resolution: 800(RGB)×480, WVGA 133PPI Active Area: 152.4(W)×91.44(H) Mm
Outline Dim.: 164.55(H)×105.01(V)×10.2(D) Mm Luminance: 810 Cd/m² (Typ.)
Contrast Ratio: 1000:1 (Typ.) (TM) Application: Automotive Display
Viewing Angle: 89/89/89/89 (Min.)(CR≥10) Interface Type: LVDS (1 Ch, 8-bit), 50 PinsFPC

Product Description

LA070WV6-SL01 7.0 inch LCD Screen 800*480 LCD Display Module



LA070WV6-SL01 LCD Panel Product details :



Brand LG Display
Model P/N LA070WV6-SL01
Diagonal Size 7.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 800(RGB)×480, WVGA 133PPI
Pixel Format RGB Vertical Stripe
Active Area 152.4(W)×91.44(H) mm
Bezel Opening 154.2(W)×93.24(H) mm
Outline Dim. 164.55(H)×105.01(V)×10.2(D) mm
Treatment Antiglare (Haze 25%), Hard coating (3H)
Luminance 810 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
View Direction Symmetry
Response Time 15/10 (Typ.)(Tr/Td)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Operating Mode IPS, Normally Black, Transmissive
Support Color 16.7M 60%NTSC
Light Source WLED [6S3P], 10K hours, W/O Driver
Weight 165/170g (Typ./Max.)
Designed For Automotive Display
Frame Rate 60Hz
Touch Panel Without
Interface Type LVDS (1 ch, 8-bit), 50 pinsFPC
Power Supply 3.3/13.0/18.5/-7.5V (Typ.)(DVDD/AVDD/VGH/VGL)
Environment Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²)
LA070WV6-SL01 7.0 inch LCD Screen 800*480 LCD Display Module
LA070WV6-SL01 LCD Display Note :

Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.



Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.



Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.



LA070WV6-SL01 LCD Panel Shipping and Package :LA070WV6-SL01 7.0 inch LCD Screen 800*480 LCD Display Module 0

SHIPPING Information for LA070WV6-SL01​ LCD Display :



We offer a variety of shipping options including Alibaba standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.



Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.



Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.



To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.



Reminder for LA070WV6-SL01 LCD Display Purchase :



Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.



To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.



LA070WV6-SL01 LCD Panel FAQ :



Q: Can I pay my goods LA070WV6-SL01 by credit card ?

A: Yes!you can use your credit card through your Paypal account.



Q: How do you ship my goods LA070WV6-SL01 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.



Q: Can you give me a discount if I need a large quantity of LA070WV6-SL01 ?

A: Of course!If you make a large order, we will give you a discount.



Q: I do not find the LCD I am looking for in the website, what should I do ?

A: You can give us some pictures,we have a lot of LCD out of shelves.



Q: How long will I receive my goods of LA070WV6-SL01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.



Want to Know more details about this product
I am interested in LA070WV6-SL01 7.0 inch LCD Screen 800*480 LCD Display Module could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
