B133XW03 V3 Laptop Screen Display 13.3 INCH LCD for AUO
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B133XW03 V3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B133XW03 V3 | Resolution: | 1366(RGB)×768, WXGA 118PPI |
|---|---|---|---|
| Active Area: | 293.42(W)×164.97(H) Mm | Luminance: | 200 Cd/m² (Typ.) |
| Contrast Ratio: | 500:1 (Typ.) (TM) | Operating Mode: | TN, Normally White, Transmissive |
| Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) | Light Source: | WLED, 10K Hours, With LED Driver |
| Designed For: | Laptop | Interface Type: | LVDS (1 Ch, 6-bit), 40 PinsConnector |
Product Description

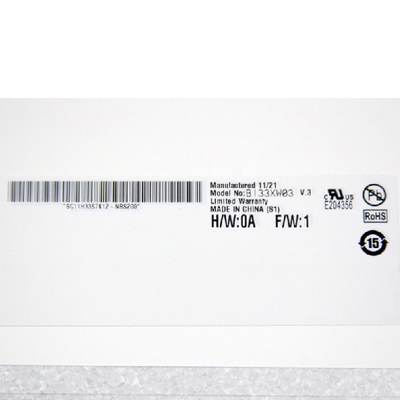

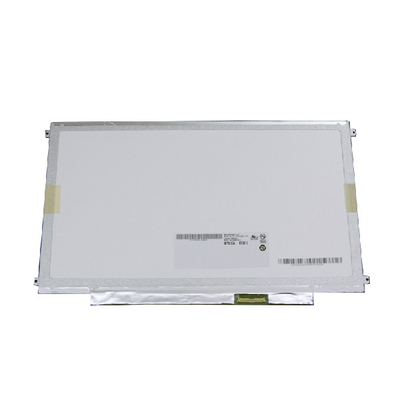

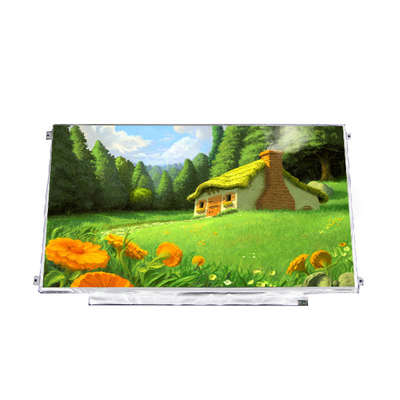

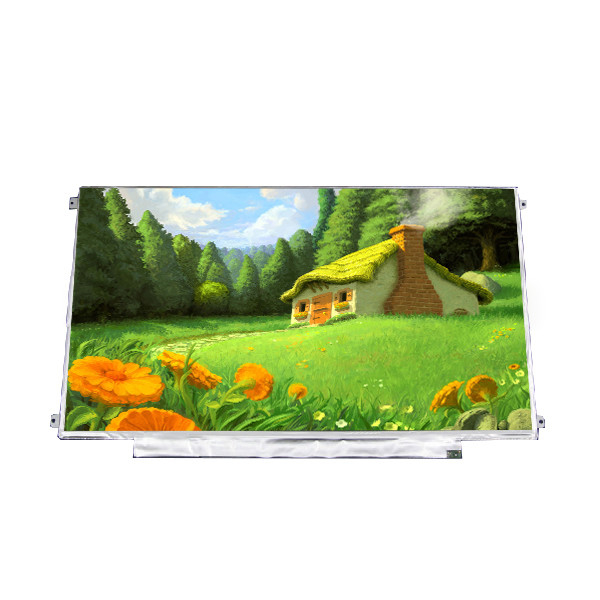

B133XW03 V3 Laptop Screen Display 13.3 INCH LCD for AUO
B133XW03 V3 LCD Panel Product details :
| Brand | AUO |
| Model P/N | B133XW03 V3 |
| Diagonal Size | 13.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 118PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 293.42(W)×164.97(H) mm |
| Bezel Opening | 297.22(W)×168.77(H) mm |
| Outline Dim. | 317.2(H)×188.7(V)×3.6(D)mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 45%NTSC |
| Light Source | WLED, 10K hours, With LED Driver |
| Form Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit), 40 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| B133XW03 V3 Laptop Screen Display 13.3 INCH LCD for AUO | |
B133XW03 V3 LCD Screen Payment :
Payment Methods: We accept payments through Alipay, Credit card, bank transfer, Western Union, Moneybooker, and other online payment platforms. You can choose the method that best suits your preferences and convenience.
Payment Deadline: Payment must be completed within 3 days of placing your order. This ensures timely processing and delivery of your purchase.
Checkout Process: If you encounter any difficulties during the checkout process after the auction closes, we kindly ask for your patience. Sometimes, delays may occur due to technical reasons. Please retry the payment process after waiting for a few minutes. Remember, payments must still be finalized within the 3-day deadline.
B133XW03 V3 LCD Screen note :
1. Is the LCD model searched by the search engine consistent with the one you need to buy? Some models look similar, but in fact there will be one or two letters or numbers that are different, which will lead to the difference between what you buy and what you actually need. In addition, there are a few LCD screens of the same model, which will have several LCD interfaces. So you must carefully compare the LCD model, LCD interface and LCD bracket.
2. Many buyers can't tell whether they need to buy a separate LCD screen or a LCD assembly, resulting in many buyers choosing the wrong products. But before you buy a LCD screen, please try to separate your LCD screen from the cover in front of the notebook. If you can easily separate it, you can buy a LCD screen separately. If it is difficult to separate, it is likely to be full of glue. You need to go to a professional maintenance site for freeze separation. I suggest you buy LCD assembly
3. Because there are a wide variety of LCD models, many models are compatible with each other, so all LCD screens in my store are sent according to the general compatible models selected according to the inventory. It is not guaranteed to send the same model, so please pay attention. If you need a special model, you must communicate with customer service to confirm before purchasing.
B133XW03 V3 LCD Panel Shipping and Package :
B133XW03 V3 LCD screen possible purchase groups:
We are pleased to offer you a bundle option with the B133XW03 V3 LCD display. We would like to inform you that our shipping charges are non-negotiable. If these conditions do not apply to you, we recommend that you do not bid. These costs include not only postage costs but also administrative costs, miscellaneous supplies, handling costs and VAT.
We assure you that our P&P pricing includes postage, padded envelopes and administration fees. If you do not agree to these administrative fees, we kindly invite you not to purchase.
Thank you very much for your understanding and cooperation. If you have any questions or concerns, please feel free to contact us. We are here to help you.
B133XW03 V3 LCD Panel FAQ :
Q: How to make payment of B133XW03 V3 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of B133XW03 V3?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of B133XW03 V3 ?
A: we will give you tracking number then you can trace your order from website.
