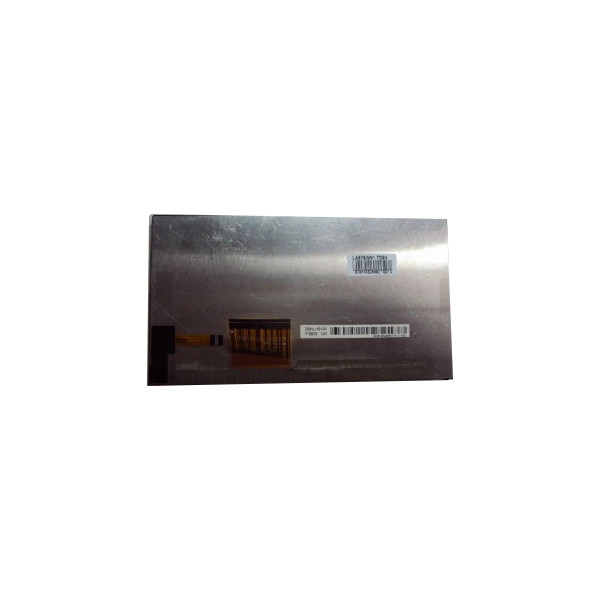

LA070WV2-TD01 LCD Display Panel 7.0 inch 800*480 LCD Screen Module

Brand Name:	LG Display
Model Number:	LA070WV2-TD01
MOQ:	1pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LA070WV2-TD01

Diagonal Size:

Resolution:

800(RGB)×480, WVGA 133PPI

Active Area:

152.4(W)×91.44(H) Mm

Outline Dim.:

169(W)×103.45(H) Mm

Luminance:

550 Cd/m² (Typ.)

Application:

Automotive Display

Viewing Angle:

70/70/50/60 (Typ.)(CR≥10)

Weight:

165/175g (Typ./Max.)

Interface Type:

Parallel RGB (1 Ch, 6-bit)60 Pins FPC

Supply Ability:

100000 Unit/Units per Month

Product Description

LA070WV2-TD01 LCD Display Panel 7.0 inch 800*480 LCD Screen Module

LA070WV2-TD01 LCD Panel Product details :

Brand	LG Display
Model P/N	LA070WV2-TD01
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	154.45(W)×93.24(H) mm
Outline Dim.	169(W)×103.45(H) mm
Luminance	550 cd/m² (Typ.)
View Direction	-
Viewing Angle	70/70/50/60 (Typ.)(CR≥10)
Support Color	262K 64% NTSC
Weight	165/175g (Typ./Max.)
Frame Rate	60Hz
Treatment	Antiglare
Contrast Ratio	500:1 (Typ.) (TM)
Response Time	6/9 (Typ.)(Tr/Td)
Operating Mode	TN, Normally White, Transmissive
Light Source	WLED [9S2P], W/O Driver
Designed For	Automotive Display
Touch Panel	Without
Interface Type	Parallel RGB (1 ch, 6-bit)60 pins FPC
Power Supply	3.3/10.0/18.5/-8.5V (Typ.)(DVDD/AVDD/VGH/VGL)
Environment	Operating Temperature: -30 ~ 85 °C; Storage Temperature: -40 ~ 95 °C
LA070WV2-TD01 LCD Display Panel 7.0 inch 800*480 LCD Screen Module

LA070WV2-TD01 LCD Display Note :

Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.

Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.

Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.

LA070WV2-TD01 LCD Panel Shipping and Package :

SHIPPING Information for LA070WV2-TD01 LCD Display :

We offer a variety of shipping options including ALI standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.

Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.

Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.

To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.

Reminder for LA070WV2-TD01 LCD Display Purchase :

Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.

To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.

LA070WV2-TD01 LCD Panel FAQ :

Q: Can You declare my order of LA070WV2-TD01 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of LA070WV2-TD01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of LA070WV2-TD01 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of LA070WV2-TD01 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
