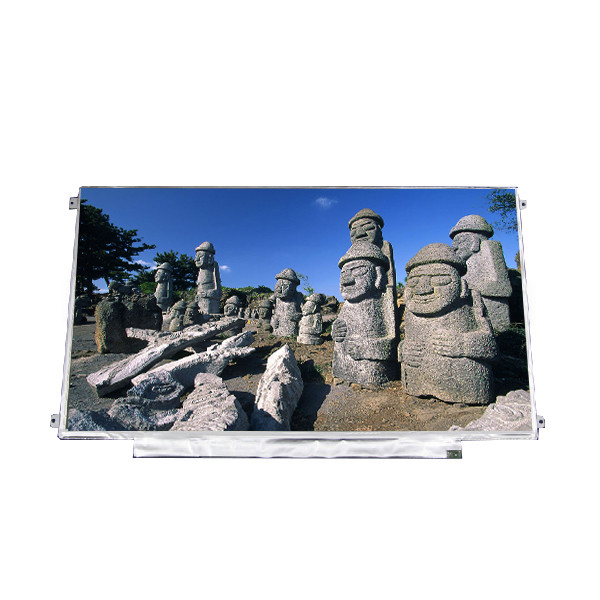

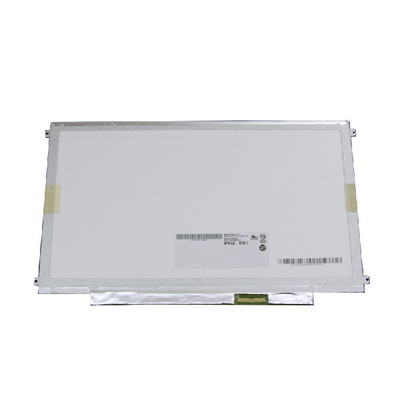

B133XW03 V5 13.3 inch 1366*768 LCD Display LCD Laptop Screen
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B133XW03 V5 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B133XW03 V5 | Resolution: | 1366(RGB)×768, WXGA 118PPI |
---|---|---|---|
Active Area: | 293.42(W)×164.97(H) Mm | Luminance: | 200 Cd/m² (Typ.) |
Contrast Ratio: | 500:1 (Typ.) (TM) | Operating Mode: | TN, Normally White, Transmissive |
Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) | Light Source: | WLED, 15K Hours, With LED Driver |
Designed For: | Laptop | Interface Type: | LVDS (1 Ch, 6-bit), 40 PinsConnector |
Product Description
B133XW03 V5 13.3 inch 1366*768 LCD DISPLAY LCD LAPTOP SCREEN
B133XW03 V5 LCD Panel Product details :
Brand | AUO |
Model P/N | B133XW03 V5 1 Compatible |
Diagonal Size | 13.3" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1366(RGB)×768, WXGA 118PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 293.42(W)×164.97(H) mm |
Bezel Opening | 297.22(W)×168.77(H) mm |
Outline Dim. | 314.1(H)×188.7(V)×3.6(D) mm |
Treatment | Antiglare, Hard coating (3H) |
Luminance | 200 cd/m² (Typ.) |
Contrast Ratio | 500:1 (Typ.) (TM) |
View Direction | 6 o'clock |
Response Time | 8 (Typ.)(Tr+Td) |
Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
Operating Mode | TN, Normally White, Transmissive |
Support Color | 262K 60%NTSC |
Light Source | WLED, 15K hours, With LED Driver |
Form Style | Flat (PCBA Flat, T3.4~4.0mm) |
Designed For | Laptop |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | LVDS (1 ch, 6-bit), 40 pinsConnector |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
B133XW03 V5 13.3 inch 1366*768 LCD DISPLAY LCD LAPTOP SCREEN |
B133XW03 V5 LCD Panel Shipping and Package :
B133XW03 V5 LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of B133XW03 V5?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of B133XW03 V5 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of B133XW03 V5 ?
A: We accept T/T , Paypal , western union .
