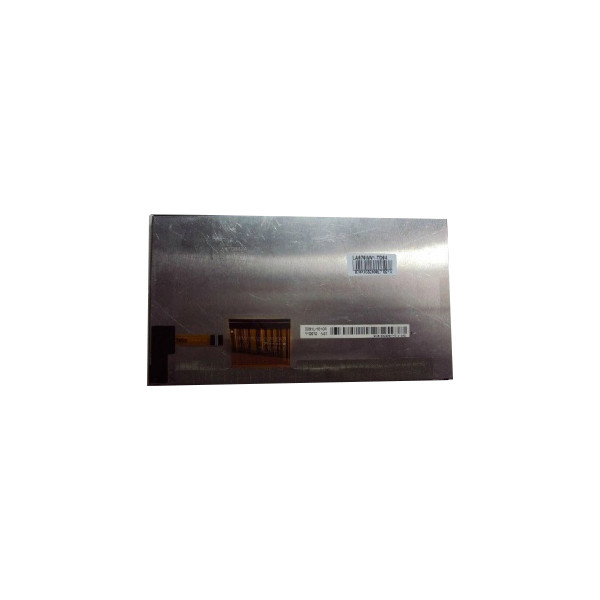

LA070WV1-TD06 7.0 inch 800*480 LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LA070WV1-TD06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LA070WV1-TD06 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 134PPI | Active Area: | 156.24(W)×82.368(H) Mm |
| Outline Dim.: | 167(W)×93(H)×7.5(D) | Luminance: | 750 (Typ.)(cd/m²) |
| Application: | Automotive Display | Interface Type: | Parallel RGB (1 Ch, 6-bit), 60 Pins FPC |
| Viewing Angle: | 70/70/50/60 (Typ.)(CR≥10) | ||
Product Description
LA070WV1-TD06 7.0 inch 800*480 LCD Display Panel
LA070WV1-TD06 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LA070WV1-TD06 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 156.24(W)×82.368(H) mm |
| Bezel Opening | 158.3(W)×84.5(H) mm |
| Outline(mm) | 167(W)×93(H)×7.5(D) |
| Luminance | 750 (Typ.)(cd/m²) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Good View at | 6 o'clock |
| Color Depth | 262K 60% NTSC |
| Mass | 145/155g (Typ./Max.) |
| Refresh Rate | 60Hz |
| Treatment | Antiglare (Haze 44%), Hard coating (3H) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 5/15 (Typ.)(Tr/Td) ms |
| Backlight | 7S2P WLED , 10K hours , No Driver |
| Used for | Automotive Display |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 6-bit), 60 pins FPC |
| Voltage Supply | 3.3/10.0/18.5/-8.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
| LA070WV1-TD06 7.0 inch 800*480 LCD Display Panel | |
LA070WV1-TD06 LCD Display Note :
Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.
Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.
Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.
LA070WV1-TD06 LCD Panel Shipping and Package :
SHIPPING Information for LA070WV1-TD06 LCD Display :
We offer a variety of shipping options including ALI standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.
Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.
Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.
To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.
Reminder for LA070WV1-TD06 LCD Display Purchase :
Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.
To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.
LA070WV1-TD06 LCD Panel FAQ :
Q: How to make payment of LA070WV1-TD06 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of LA070WV1-TD06 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of LA070WV1-TD06 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of LA070WV1-TD06 ?
A: The order will be shipped within 2-3 working days after received your payment.
