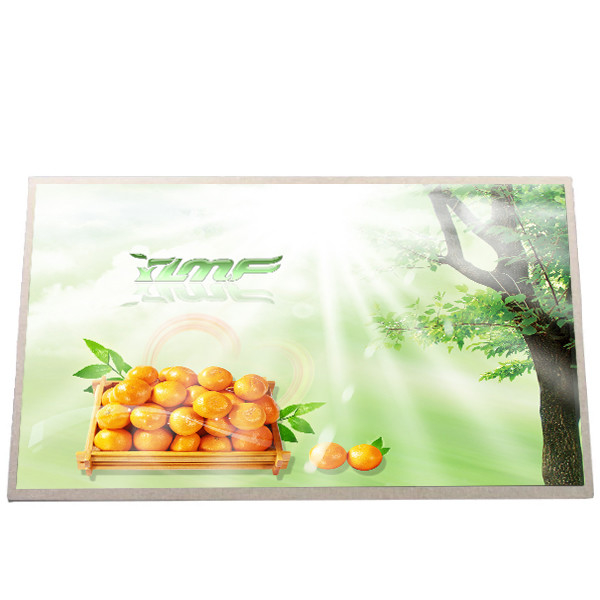

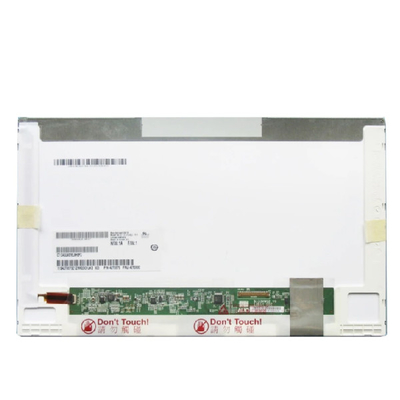

B133XW04 V1 13.3 inch 1366*768 LCD Display LCD Laptop Screen
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B133XW04 V1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B133XW04 V1 | Resolution: | 1366(RGB)×768, WXGA 118PPI |
---|---|---|---|
Active Area: | 293.42(W)×164.97(H) Mm | Luminance: | 200 Cd/m² (Typ.) |
Contrast Ratio: | 400:1 (Typ.) (TM) | Operating Mode: | TN, Normally White, Transmissive |
Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) | Light Source: | WLED, 10K Hours, With LED Driver |
Designed For: | Laptop | Interface Type: | LVDS (1 Ch, 6-bit), 40 PinsConnector |
Product Description
B133XW04 V1 13.3 inch 1366*768 LCD DISPLAY LCD LAPTOP SCREEN
B133XW04 V1 LCD Panel Product details :
Brand | AUO |
Model P/N | B133XW04 V1 |
Diagonal Size | 13.3" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1366(RGB)×768, WXGA 118PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 293.42(W)×164.97(H) mm |
Bezel Opening | 296.82(W)×169.82(H) mm |
Outline Size | 307.6(W)×183.1(H)×5.07(D) mm |
Brightness | 200 cd/m² (Typ.) |
Viewing Angle | 45/45/15/35 (Min.)(CR≥10) |
Best View on | 6 o'clock |
Display Colors | 262K 45%NTSC |
Frequency | 60Hz |
Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
Surface | Antiglare, Hard coating (3H) |
Contrast Ratio | 400:1 (Typ.) (TM) |
Display Mode | TN, Normally White, Transmissive |
Response Time | 8 (Typ.)(Tr+Td) |
Lamp Type | WLED , 10K hours , With LED Driver |
Touch Screen | Without |
Application | Laptop |
Signal Interface | LVDS (1 ch, 6-bit), 40 pinsConnector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
B133XW04 V1 13.3 inch 1366*768 LCD DISPLAY LCD LAPTOP SCREEN |
B133XW04 V1 LCD Panel Shipping and Package :
B133XW04 V1 LCD Panel FAQ :
Q: How can I trace my order of B133XW04 V1 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of B133XW04 V1 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of B133XW04 V1 ?
A: The order will be shipped within 2-3 working days after received your payment.
