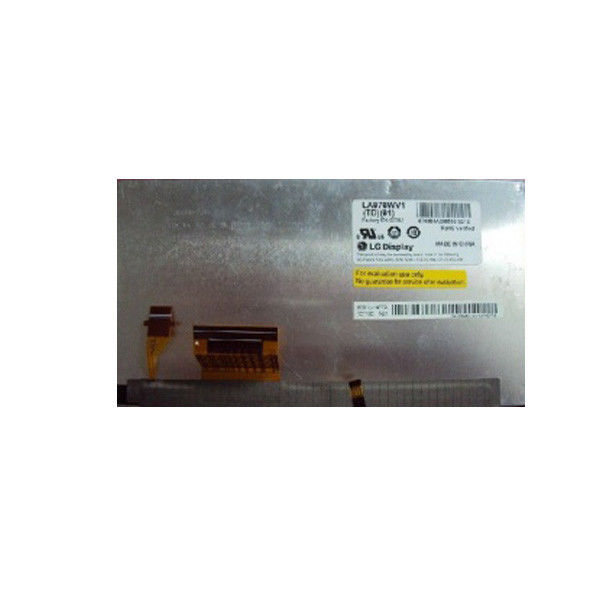

LA070WV1-TD03 7.0 inch Car LCD Display Module for LG

Brand Name:	LG Display
Model Number:	LA070WV1-TD03
MOQ:	1pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LA070WV1-TD03

Diagonal Size:

Resolution:

800(RGB)×480, WVGA 134PPI

Active Area:

156.24(W)×82.368(H) Mm

Outline Dim.:

168.8(W)×93.5(H)×10.7(D) Mm

Luminance:

700 Cd/m² (Typ.)

Application:

Automotive Display

Interface Type:

TTL (1 Ch, 6-bit), 40 PinsConnector

Viewing Angle:

70/70/50/60 (Typ.)(CR≥10)

Weight:

210/220g (Typ./Max.)

Supply Ability:

100000 Unit/Units per Month

Product Description

LA070WV1-TD03 7.0 inch Car LCD Display Module for LG

LA070WV1-TD03 LCD Panel Product details :

Brand	LG Display
Model P/N	LA070WV1-TD03
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 134PPI
Pixel Format	RGB Vertical Stripe
Active Area	156.24(W)×82.368(H) mm
Bezel Opening	158.4(W)×85.1(H) mm
Outline Size	168.8(W)×93.5(H)×10.7(D) mm
Treatment	Antiglare, Reflection 4.0% (Typ.)
Luminance	700 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/70/50/60 (Typ.)(CR≥10)
Response	5/15 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K 64%NTSC
Backlight	WLED, 15K hours, With LED Driver
Mass	210/220g (Typ./Max.)
Used for	Automotive Display
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	TTL (1 ch, 6-bit), 40 pinsConnector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 70 °C ; Vibration Level: 2.84G (27.8 m/s²)
LA070WV1-TD03 7.0 inch Car LCD Display Module for LG

LA070WV1-TD03 LCD Display Note :

Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.

Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.

Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.

LA070WV1-TD03 LCD Panel Shipping and Package :

SHIPPING Information for LA070WV1-TD03 LCD Display :

We offer a variety of shipping options including ALI standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.

Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.

Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.

To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.

Reminder for LA070WV1-TD03 LCD Display Purchase :

Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.

To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.

LA070WV1-TD03 LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can You declare my order of LA070WV1-TD03 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of LA070WV1-TD03 ?

A: We accept T/T , Paypal , western union .

Q: Can you give me a discount if I need a large quantity of LA070WV1-TD03 ?

A: Of course!If you make a large order, we will give you a discount.
