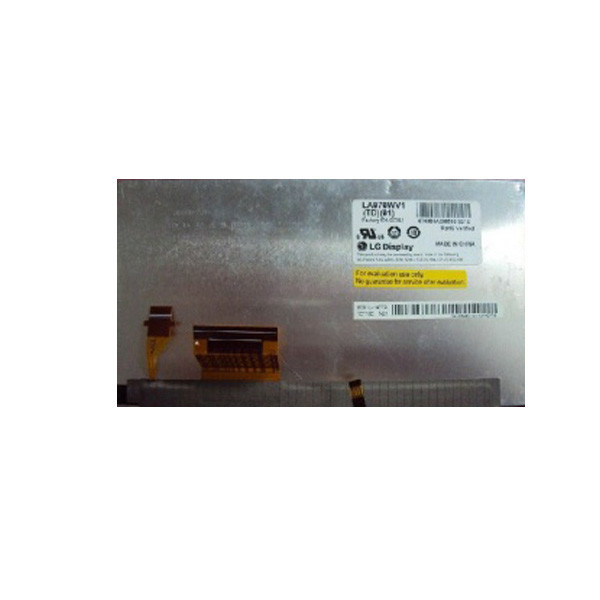

LA070WV1-TD02 7.0 inch 800*480 LCD Screen Panel for Automotive Display
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LA070WV1-TD02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LA070WV1-TD02 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 134PPI | Active Area: | 156.24(W)×82.368(H) Mm |
| Outline Dim.: | 168.8(W)×93.5(H)×11(D) Mm | Luminance: | 490 Cd/m² (Typ.) |
| Application: | Automotive Display | Interface Type: | Parallel RGB (1 Ch, 6-bit), 40 PinsConnector |
| Viewing Angle: | 70/70/50/60 (Typ.)(CR≥10) | Weight: | 210/220g (Typ./Max.) |
Product Description
LA070WV1-TD02 7.0 inch 800*480 LCD Screen Panel for Automotive Display
LA070WV1-TD02 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LA070WV1-TD02 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 156.24(W)×82.368(H) mm |
| Bezel Opening | 158.7(W)×85.1(H) mm |
| Outline Size | 168.8(W)×93.5(H)×11(D) mm |
| Surface | Antiglare, Reflection 4.0% (Typ.) |
| Brightness | 490 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 5/15 (Typ.)(Tr/Td) |
| Display Colors | 262K 62%NTSC |
| Lamp Type | WLED, 15K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 210/220g (Typ./Max.) |
| Application | Automotive Display |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 40 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 85 °C ; Vibration Level: 2.84G (27.8 m/s²) |
| LA070WV1-TD02 7.0 inch 800*480 LCD Screen Panel for Automotive Display | |
LA070WV1-TD02 LCD Display Note :
Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.
Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.
Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.
LA070WV1-TD02 LCD Panel Shipping and Package :
SHIPPING Information for LA070WV1-TD02 LCD Display :
We offer a variety of shipping options including ALI standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.
Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.
Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.
To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.
Reminder for LA070WV1-TD02 LCD Display Purchase :
Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.
To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.
LA070WV1-TD02 LCD Panel FAQ :
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: What's the different between original touch panel and compatible touch screen ?
A : Don't worry it . The compatible touch panel has the same function as original one .
Q: How long will I receive my goods of LA070WV1-TD02 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for LG Display Mobile Display LA070WV1-TD02 ?
A: We accept T/T , Paypal , western union .
