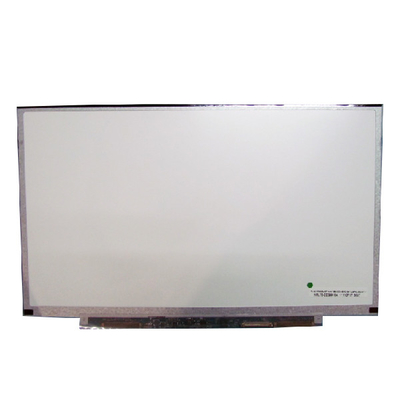

B133XW07 V2 13.3 inch 1366*768 LCD Display lcd screen
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B133XW07 V2 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B133XW07 V2 | Resolution: | 1366(RGB)×768, WXGA 118PPI |
---|---|---|---|
Active Area: | 293.42(W)×164.97(H) Mm | Luminance: | 200 Cd/m² (Typ.) |
Contrast Ratio: | 250:1 (Typ.) (TM) | Operating Mode: | TN, Normally White, Transmissive |
Viewing Angle: | 35/35/10/30 (Min.)(CR≥10) | Light Source: | WLED [8S5P], 10K Hours, With LED Driver |
Designed For: | Laptop | Interface Type: | LVDS (1 Ch, 6-bit), 40 PinsConnector |
Product Description
B133XW07 V2 13.3 inch 1366*768 LCD Display lcd screen
B133XW07 V2 LCD Panel Product details :
Brand | AUO |
Model P/N | B133XW07 V2 |
Diagonal Size | 13.3" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1366(RGB)×768, WXGA 118PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 293.42(W)×164.97(H) mm |
Bezel Opening | 294.9(W)×166.4(H) mm |
Outline Dim. | 302.06(H)×188.7(V)×3.88(D) mm |
Treatment | Glare (Haze 0%), Hard coating |
Luminance | 200 cd/m² (Typ.) |
Contrast Ratio | 250:1 (Typ.) (TM) |
View Direction | 6 o'clock |
Response Time | 9/23 (Typ.)(Tr/Td) |
Viewing Angle | 35/35/10/30 (Min.)(CR≥10) |
Operating Mode | TN, Normally White, Transmissive |
Support Color | 262K |
Light Source | WLED [8S5P], 10K hours, With LED Driver |
Form Style | Flat (PCBA Flat, T3.4~4.0mm) |
Designed For | Laptop |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | LVDS (1 ch, 6-bit), 40 pinsConnector |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 65 °C |
B133XW07 V2 13.3 inch 1366*768 LCD Display lcd screen |
B133XW07 V2 LCD Panel Shipping and Package :
B133XW07 V2 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of B133XW07 V2 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of B133XW07 V2 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of B133XW07 V2 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of B133XW07 V2 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
