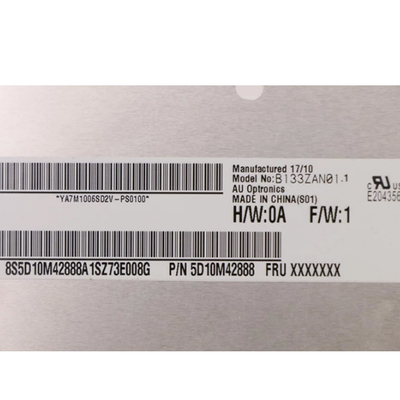

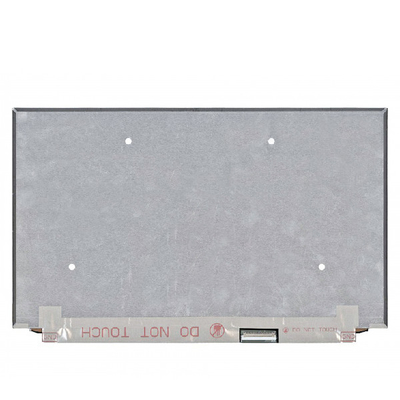

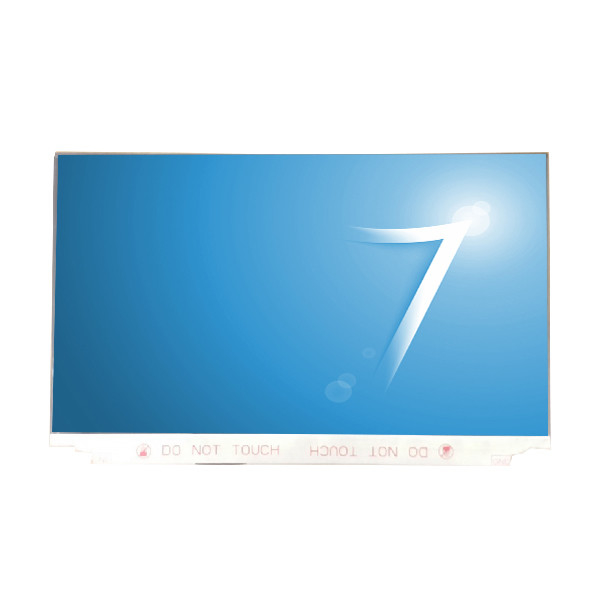

B133ZAN01.1 13.3 inch 3840*2160 LCD Display lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B133ZAN01.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B133ZAN01.1 | Resolution: | 3840(RGB)×2160, UHD 332PPI |
|---|---|---|---|
| Active Area: | 293.76(W)×165.24(H) Mm | Luminance: | 375 Cd/m² (Typ.) |
| Contrast Ratio: | 1800:1 (Typ.) (TM) | Response Time: | 30 (Typ.)(Tr+Td) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Light Source: | WLED, With LED Driver |
| Designed For: | Laptop | Interface Type: | EDP (4 Lanes), EDP1.3, Connector40 Pins |
Product Description
B133ZAN01.1 13.3 inch 3840*2160 LCD Display lcd screen
B133ZAN01.1 LCD Panel Product details :
| Brand | AUO |
| Model P/N | B133ZAN01.1 |
| Diagonal Size | 13.3" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 3840(RGB)×2160, UHD 332PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 293.76(W)×165.24(H) mm |
| Bezel Opening | - |
| Outline (mm) | 298.96×187.74×2.4 (H×V×D) |
| Treatment | Glare (Haze 0%) |
| Luminance | 375 cd/m² (Typ.) |
| Contrast Ratio | 1800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AHVA, Normally Black, Transmissive |
| Color Depth | 16.7M 71%NTSC |
| Backlight | WLED, With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (4 Lanes), eDP1.3, Connector40 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B133ZAN01.1 13.3 inch 3840*2160 LCD Display lcd screen | |
B133ZAN01.1 LCD Screen Payment :
Payment Methods: We accept payments through Alipay, Credit card, bank transfer, Western Union, Moneybooker, and other online payment platforms. You can choose the method that best suits your preferences and convenience.
Payment Deadline: Payment must be completed within 3 days of placing your order. This ensures timely processing and delivery of your purchase.
Checkout Process: If you encounter any difficulties during the checkout process after the auction closes, we kindly ask for your patience. Sometimes, delays may occur due to technical reasons. Please retry the payment process after waiting for a few minutes. Remember, payments must still be finalized within the 3-day deadline.
B133ZAN01.1 LCD Screen note :
1. Is the LCD model searched by the search engine consistent with the one you need to buy? Some models look similar, but in fact there will be one or two letters or numbers that are different, which will lead to the difference between what you buy and what you actually need. In addition, there are a few LCD screens of the same model, which will have several LCD interfaces. So you must carefully compare the LCD model, LCD interface and LCD bracket.
2. Many buyers can't tell whether they need to buy a separate LCD screen or a LCD assembly, resulting in many buyers choosing the wrong products. But before you buy a LCD screen, please try to separate your LCD screen from the cover in front of the notebook. If you can easily separate it, you can buy a LCD screen separately. If it is difficult to separate, it is likely to be full of glue. You need to go to a professional maintenance site for freeze separation. I suggest you buy LCD assembly
3. Because there are a wide variety of LCD models, many models are compatible with each other, so all LCD screens in my store are sent according to the general compatible models selected according to the inventory. It is not guaranteed to send the same model, so please pay attention. If you need a special model, you must communicate with customer service to confirm before purchasing.
B133ZAN01.1 LCD Panel Shipping and Package :
B133ZAN01.1 LCD screen possible purchase groups:
We are pleased to offer you a bundle option with the B133ZAN01.1 LCD display. We would like to inform you that our shipping charges are non-negotiable. If these conditions do not apply to you, we recommend that you do not bid. These costs include not only postage costs but also administrative costs, miscellaneous supplies, handling costs and VAT.
We assure you that our P&P pricing includes postage, padded envelopes and administration fees. If you do not agree to these administrative fees, we kindly invite you not to purchase.
Thank you very much for your understanding and cooperation. If you have any questions or concerns, please feel free to contact us. We are here to help you.
B133ZAN01.1 LCD Panel FAQ :
Q: Can You declare my order of B133ZAN01.1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of B133ZAN01.1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of B133ZAN01.1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of B133ZAN01.1 ?
A: The order will be shipped within 2-3 working days after received your payment.
