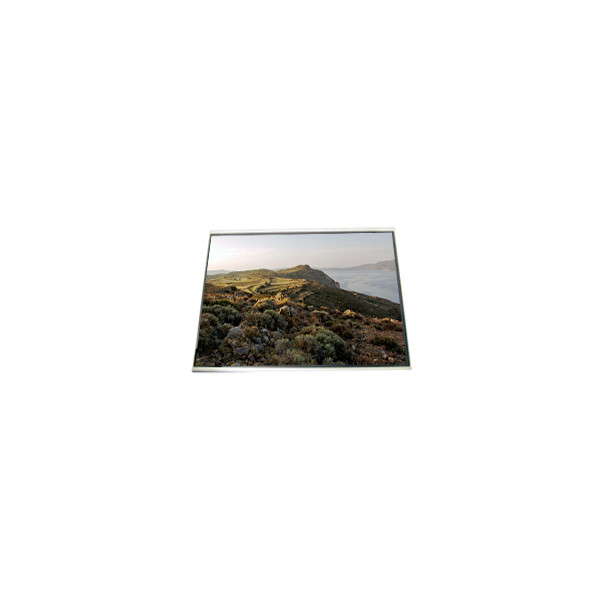

HSD055BHW5-Q00 5.5 inch LCD Display Screen 720*1280 TFT LCD Panel module
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD055BHW5-Q00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD055BHW5-Q00 | Diagonal Size: | 5.5" |
|---|---|---|---|
| Resolution: | 720(RGB)×1280, WXGA 268PPI | Active Area: | 68.04(W)×120.96(H) Mm |
| Outline Dim.: | 70.04(W)×127.1(H)×0.5(D) Mm | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| Color Depth: | 16.7M 68%NTSC | Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| D-IC Detail: | COG Suggest OTM1289A, ILI9881C, HX8394F | Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
Product Description
HSD055BHW5-Q00 5.5 inch LCD Display Screen 720*1280 TFT LCD Panel module
HSD055BHW5-Q00 LCD Panel Product details :
| Brand | HannStar |
| Model P/N | HSD055BHW5-Q00 |
| Diagonal Size | 5.5" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1280, WXGA 268PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×120.96(H) mm |
| Bezel Opening | - |
| Outline Dim. | 70.04(W)×127.1(H)×0.5(D) mm |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 12/13 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Plate Thickness | 0.25+0.25 mm |
| Transmittance | 10.45% (Typ.)(without Polarizer) |
| Support Color | 16.7M 68%NTSC |
| Light Source | No B/L |
| Weight | - |
| Designed For | Mobile Phone |
| Frame Rate | - |
| Touch Panel | Without |
| D-IC Detail | COG Suggest OTM1289A, ILI9881C, HX8394F |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
HSD055BHW5-Q00 LCD Display Note :
Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.
Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.
Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.
HSD055BHW5-Q00 LCD Panel Shipping and Package :
SHIPPING Information for HSD055BHW5-Q00 LCD Display :
We offer a variety of shipping options including ALI standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.
Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.
Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.
To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.
HSD055BHW5-Q00 LCD Display Estimated Delivery Times:
If you're ordering a product from another country, you may be wondering how long it will take to arrive. The good news is that, for the most part, delivery times are relatively quick and efficient.
If you're ordering from the United States, United Kingdom, or Australia, you can expect your package to arrive within 7-14 working days. This is a rough estimate, but it should give you a good idea of how long you'll need to wait.
Canada is a larger and more spread-out country than any of these other locations, so delivery times may be a bit longer. However, you can generally expect to receive your package within 7-25 working days.
If you're based in France, Spain, or Germany, delivery times are also fairly reasonable. Generally, you can expect delivery within 7-20 working days. However, it's worth noting that this may vary depending on the specific product and seller.
Overall, if you're purchasing from another country, it's always a good idea to keep in mind the potential delivery times. However, you can rest assured that for most locations, you should receive your package relatively quickly and without any major delays.
Our shipping policy ensures that your orders are delivered to you in a timely manner, with estimated delivery times for different regions. While we strive to ensure that your orders reach you within the specified timeframe, please note that there may be occasional delays due to factors beyond our control, such as customs clearance and postal service efficiency.
However, we also offer expedited shipping through DHL Express, which guarantees delivery within 3-6 working days. This is an excellent option if you need your order to arrive quickly.
We pride ourselves on providing quality products and excellent customer service. If you have any concerns about your order, please do not hesitate to contact us and we will do our best to assist you. We appreciate your business and look forward to serving you in the future.
HSD055BHW5-Q00 LCD Panel FAQ :
Q: Can you tested the HSD055BHW5-Q00 before shipping ?
A: Of course , our lcd panel HSD055BHW5-Q00 was Strictly tested before shipping.
Q: How to order HSD055BHW5-Q00 ?
A: We accept T/T , Paypal , western union .
Q: How long the warranty of the lcd HSD055BHW5-Q00 ?
A: 90 days .
Q: What happen if the lcd panel HSD055BHW5-Q00 I received can't work ?
A: HSD055BHW5-Q00 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
