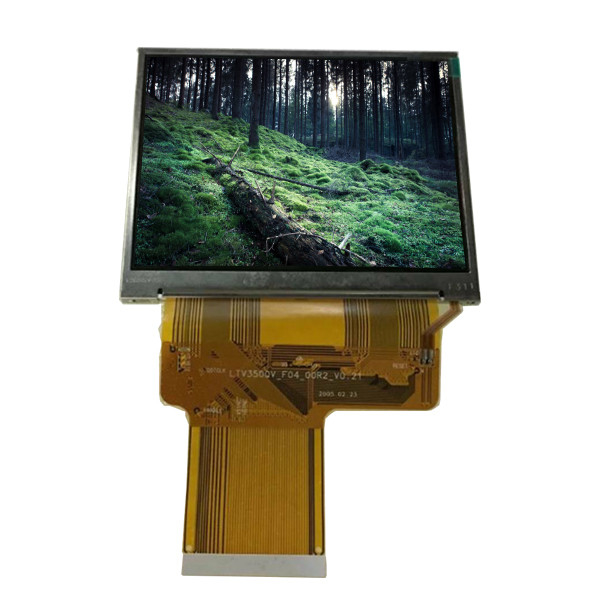

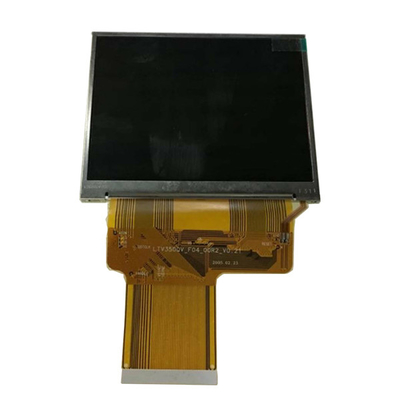

LTV350QV-F04 3.5 inch 320*240 TFT-LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTV350QV-F04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTV350QV-F04 | Diagonal Size: | 3.5" |
|---|---|---|---|
| Resolution: | 320(RGB)×240, QVGA 115PPI | Active Area: | 70.08(W)×52.56(H) Mm |
| Outline Dim.: | 76.9(W)×63.9(H)×3.35(D) Mm | Viewing Angle: | 60/60/50/55 (Typ.)(CR≥10) |
| Application: | Portable Navigation、MP3 PMP、Digital Still Camera、Digital Video Camera | Panel Type: | A-Si TFT-LCD, LCM |
| Interface Type: | Parallel RGB (1 Ch, 8-bit) + SPI, 54 Pins FPC | Panel Weight: | 32.0/37.0g (Typ./Max.) |
Product Description
LTV350QV-F04 3.5 inch 320*240 TFT-LCD Display Screen
LTV350QV-F04 LCD Panel Product details :
| Brand | Samsung |
| Model P/N | LTV350QV-F04 |
| Diagonal Size | 3.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 320(RGB)×240, QVGA 115PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 70.08(W)×52.56(H) mm |
| Bezel Opening | 72.88(W)×55.36(H) mm |
| Outline Size | 76.9(W)×63.9(H)×3.35(D) mm |
| Surface | - |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Viewing Angle | 60/60/50/55 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, TMR |
| Best View on | 6 o'clock |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 53%NTSC |
| Lamp Type | 6S1PWLED, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 32.0/37.0g (Typ./Max.) |
| Application | Portable Navigation,MP3 PMP,Digital Still Camera,Digital Video Camera |
| Signal Interface | Parallel RGB (1 ch, 8-bit) + SPI, 54 pins FPC |
| Input Voltage | 3.3/4.9/18.0/-10.0V (Typ.)(VCC/DDVDH/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 60 °C ;Storage Temp.: -30 ~ 70 °C |
| LTV350QV-F04 3.5 inch 320*240 TFT-LCD Display Screen | |
LTV350QV-F04 LCD Display Note :
Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.
Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.
Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.
LTV350QV-F04 LCD Panel Shipping and Package :
SHIPPING Information for LTV350QV-F04 LCD Display :
We offer a variety of shipping options including ALI standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.
Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.
Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.
To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.
Reminder for LTV350QV-F04 LCD Display Purchase :
Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.
To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.
LTV350QV-F04 LCD Panel FAQ :
Q: How to make payment of LTV350QV-F04 ?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of LTV350QV-F04 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long will I receive my goods LTV350QV-F04 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90 days warranty .
