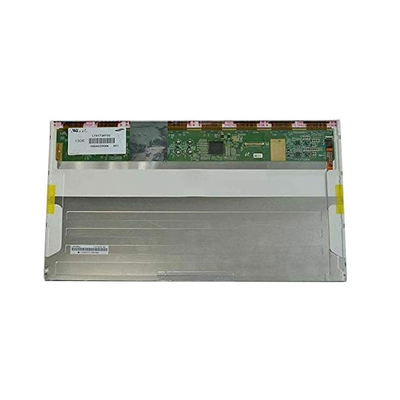

LTN173KT01-C01 LCD Display For laptop V3-772 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTN173KT01-C01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTN173KT01-C01 | Diagonal Size: | 17.3" |
|---|---|---|---|
| Resolution: | 1600(RGB)×900, HD+ 106PPI | Active Area: | 382.08(W)×214.92(H) Mm |
| Outline Size: | 398.1(W)×232.8(H)×5.8(D) Mm | Luminance: | 220 Cd/m² (Typ.) |
| Application: | Laptop | Panel Type: | A-Si TFT-LCD, LCM |
| Signal Type: | LVDS (2 Ch, 6-bit), 40 PinsConnector | Refresh Rate: | 60Hz |
Product Description
LTN173KT01-C01 LCD Display For laptop V3-772 LCD Screen
LTN173KT01-C01 LCD Panel Product details :
| Brand | Samsung |
| Model P/N | LTN173KT01-C01 |
| Diagonal Size | 17.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1600(RGB)×900, HD+ 106PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 382.08(W)×214.92(H) mm |
| Bezel Opening | 385.3(W)×218.1(H) mm |
| Outline Size | 398.1(W)×232.8(H)×5.8(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 40/40/15/30 (Min.)(CR≥10) |
| Response | 8 (Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 60%NTSC |
| Backlight | 10S6PWLED, With LED Driver |
| Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 6-bit), 40 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LTN173KT01-C01 LCD Display For laptop V3-772 LCD Screen | |
LTN173KT01-C01 LCD Display Note :
Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.
Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.
Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.
LTN173KT01-C01 LCD Panel Shipping and Package :
SHIPPING Information for LTN173KT01-C01 LCD Display :
We offer a variety of shipping options including ALI standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.
Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.
Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.
To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.
Reminder for LTN173KT01-C01 LCD Display Purchase :
Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.
To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.
LTN173KT01-C01 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional
Q: How to order Samsung Display LCD LTN173KT01-C01 ?
A: We accept T/T , Paypal , western union .
Q: Can you tested the LTN173KT01-C01 before shipping ?
A: Of course , our lcd panel LTN173KT01-C01 was Strictly tested before shipping.
Q: What happen if the lcd pane LTN173KT01-C01 received can't work ?
A: Samsung Display LTN173KT01-C01 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
