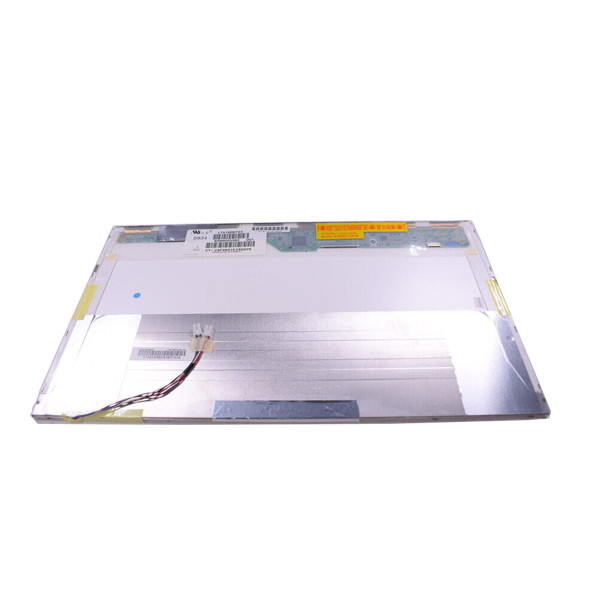

LTN160HT03-001 16.0 inch tft LCD Panel Module 1920*1080 tft LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTN160HT03-001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTN160HT03-001 | Diagonal Size: | 16.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 138PPI | Active Area: | 353.28(W)×198.72(H) Mm |
| Outline Size: | 365(W)×214(H)×6.3(D) Mm | Support Color: | 262K 72%NTSC |
| Frequency: | 60Hz | Application: | Laptop |
| Panel Type: | A-Si TFT-LCD, LCM | Signal Interface: | LVDS (2 Ch, 6-bit), 30 PinsConnector |
Product Description
LTN160HT03-001 16.0 inch tft LCD Panel Module 1920*1080 tft LCD Screen Display
LTN160HT03-001 LCD Panel Product details :
| Brand | Samsung |
| Model P/N | LTN160HT03-001 |
| Diagonal Size | 16.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 138PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 353.28(W)×198.72(H) mm |
| Bezel Opening | - |
| Outline Size | 365(W)×214(H)×6.3(D) mm |
| Treatment | Antiglare (Haze 40%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Min.) (TM) |
| Viewing Angle | 65/65/55/55 (Typ.)(CR≥10) |
| Response | 8 (Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 72%NTSC |
| Backlight | 2 pcsCCFL, 12K hours, No Driver |
| Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 6-bit), 30 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LTN160HT03-001 16.0 inch tft LCD Panel Module 1920*1080 tft LCD Screen Display | |
LTN160HT03-001 LCD Display Note :
Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.
Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.
Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.
LTN160HT03-001 LCD Panel Shipping and Package :
SHIPPING Information for LTN160HT03-001 LCD Display :
We offer a variety of shipping options including ALI standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.
Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.
Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.
To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.
Reminder for LTN160HT03-001 LCD Display Purchase :
Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.
To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.
LTN160HT03-001 LCD Panel FAQ :
Q: How to make payment of LTN160HT03-001 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of LTN160HT03-001 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of LTN160HT03-001 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of LTN160HT03-001 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
