LCD Screen Display Panel

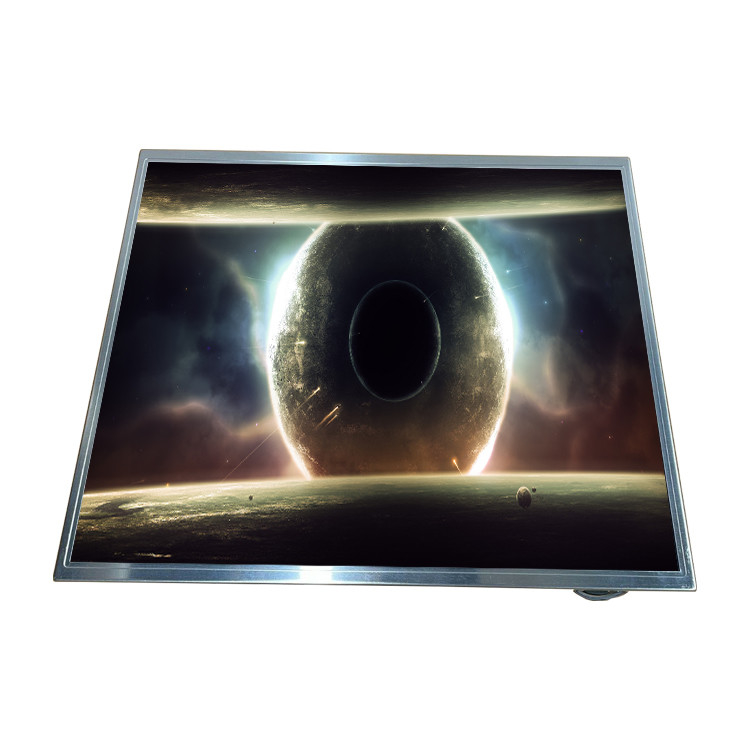

HSD170ME11-A00 17.0 inch 1280*1024 LCD Screen Display for HannStar

All Category

Floor Standing Digital Signage

HSD170ME11-A00 17.0 inch 1280*1024 LCD Screen Display for HannStar

Brand Name:	HannStar
Model Number:	HSD170ME11-A00
MOQ:	1pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD170ME11-A00

Diagonal Size:

17.0"

Resolution:

1280(RGB)×1024, SXGA 96PPI

Active Area:

337.92(W)×270.336(H) Mm

Bezel Opening:

341.52(W)×273.936(H) Mm

Outline Size:

383.5(W)×306(H) ×21(D) Mm

Surface:

Antiglare, Hard Coating (3H)

Panel Weight:

2.15Kgs (Max.)

Application:

Desktop Monitor

Signal Interface:

LVDS (2 Ch, 8-bit) , 30 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD170ME11-A00 17.0 inch 1280*1024 LCD Screen Display for HannStar

HSD170ME11-A00 LCD Panel Product details :

HannStar LCD Screen HSD170ME11-A00
Panel Brand	HannStar
Model P/N	HSD170ME11-A00
Diagonal Size	17.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA 96PPI
Pixel Format	RGB Vertical Stripe
Active Area	337.92(W)×270.336(H) mm
Bezel Opening	341.52(W)×273.936(H) mm
Outline Size	383.5(W)×306(H) ×21(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	250 cd/m² (Typ.)
Contrast Ratio	350:1 (Typ.) (TM)
Viewing Angle	75/75/70/70 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	25 (Typ.)(Tr+Td)
Display Colors	16.7M
Lamp Type	4 pcs CCFL , 50K hours , Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	2.15Kgs (Max.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 65 °C
HSD170ME11-A00 17.0 inch 1280*1024 LCD Screen Display for HannStar

HSD170ME11-A00 LCD Screen Payment and Taxation:

We offer a variety of convenient payment methods to facilitate your purchase, including PayPal, ALI Sinosure orders, bank transfers, and more.

Please note that products shipped outside of China may be subject to import tariffs, taxes, and fees imposed by the destination country's customs authorities. These additional costs are not included in the price or shipping cost of the product and are solely the responsibility of the consignee.

In the event that an order is not confirmed in a timely manner, it will be automatically cancelled after 7 working days. We encourage prompt confirmation to ensure smooth processing of your order.

HSD170ME11-A00 LCD Panel Shipping and Package :

HSD170ME11-A00 LCD Screen Item Not Received:

At our end, we meticulously handle all orders in strict accordance with our commitments. However, it's imperative to note that once the package leaves our facility, its transit is entrusted to third-party courier services. If, due to unforeseen circumstances such as delays stemming from the courier's operational constraints, issues with international or local postal services, or thorough inspections by international customs authorities, your item experiences a delay, we regret to inform you that we cannot be held liable for such delays. Please rest assured that we are committed to assisting you to the best of our abilities within the confines of our control.

HSD170ME11-A00 LCD Screen Warranty / Returns:

At our establishment, we prioritize your satisfaction and offer a 30-day peace of mind guarantee, allowing for either a refund or exchange should any concerns arise.

In the unfortunate event of receiving a defective or damaged item during transit, we kindly request that you report it to us within 48 hours of receipt.

To initiate a return or exchange, simply ensure that the purchased item(s) are returned within 30 days of receipt, maintaining its original (re-sellable) condition and packaging. Please note that refunds will be issued minus the cost of Postage & Packaging.

Should you encounter any faulty or incorrect item(s), it is imperative to return them within 30 days of receipt. The cost of return postage rests upon the customer, and we advise obtaining proof of postage in the rare event of non-receipt.

Most of our items come with a three-month warranty, covering manufacturing defects exclusively. This warranty does not extend to damage or mishandling caused by the user.

In the event that an item supplied by us develops a fault due to a manufacturing defect, we encourage you to reach out to us via the eBay messaging system for RMA (return merchandise authorization) and further return instructions. Please ensure that the returned item is accompanied by the RMA number, a copy of the invoice, and a clear statement outlining the reason for return.

Please note that refunds or replacements will only be processed upon receipt of the returned item. All returns are diligently processed within 5 working days of receipt at our office.

HSD170ME11-A00 LCD Panel FAQ :

Q: Can You declare my order of HSD170ME11-A00 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can I pay my order of HSD170ME11-A00via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How long will I receive my goods HSD170ME11-A00 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
