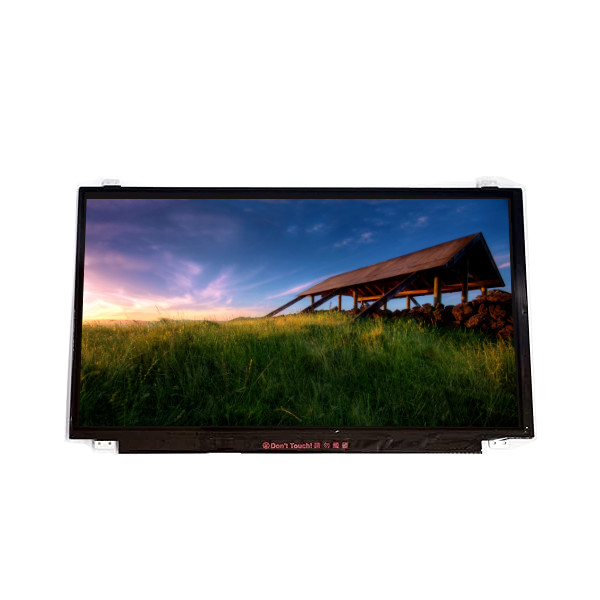

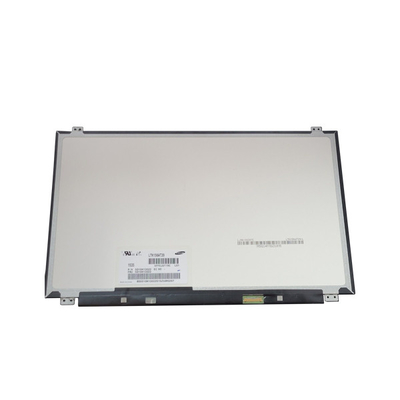

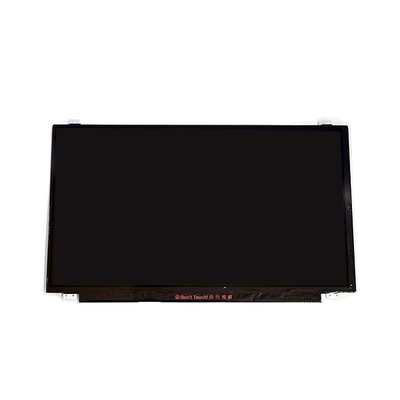

LTN156AT39-H01 15.6 inch laptop LCD Display For Lenovo E560
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTN156AT39-H01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LTN156AT39-H01 | Diagonal Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 100PPI | Active Area: | 344.232(W)×193.536(H) Mm |
| Outline Size: | 359.5(H)×223.8(V)×3.8(D) Mm | Brightness: | 220 Cd/m² (Typ.) |
| Application: | Laptop | Max. Ratings: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Signal Interface: | EDP (1 Lane), 30 PinsConnector | Frequency: | 60Hz |
Product Description
LTN156AT39-H01 15.6 inch laptop LCD Display For Lenovo E560
LTN156AT39-H01 Product details :
| Brand | Samsung |
| Model P/N | LTN156AT39-H01 23 Compatible |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.232(W)×193.536(H) mm |
| Bezel Opening | - |
| Outline Dim. | 359.5(H)×223.8(V)×3.8(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 45%NTSC |
| Light Source | WLED [9S3P], 15K hours, With LED Driver |
| Form Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (1 Lane), 30 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LTN156AT39-H01 15.6 inch laptop LCD Display For Lenovo E560 | |
LTN156AT39-H01 Friendly Reminder :
- Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.
- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
- Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.
LTN156AT39-H01 Shippment & Packing
LTN156AT39-H01 Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
LTN156AT39-H01 Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.We offer a 30days Money back or replacement.
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition. Each item is pasted with a warranty label, please do not tear up the label.
LTN156AT39-H01 FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional
Q: How to order Samsung Display LCD LTN156AT39-H01 ?
A: We accept T/T , Paypal , western union .
Q: Can you tested the LTN156AT39-H01 before shipping ?
A: Of course , our lcd panel LTN156AT39-H01 was Strictly tested before shipping.
Q: What happen if the lcd pane LTN156AT39-H01 received can't work ?
A: Samsung Display LTN156AT39-H01 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
