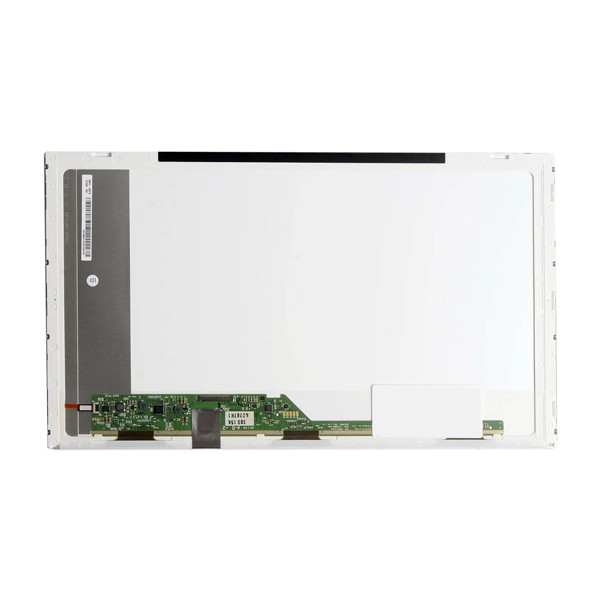

LTN156AT32-701 15.6 inch 1366*768 tft LCD Screen display
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTN156AT32-701 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LTN156AT32-701 | Diagonal Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 100PPI | Active Area: | 344.232(W)×193.536(H) Mm |
| Application: | Laptop | Interface Type: | LVDS (1 Ch, 6-bit), 40 PinsConnector |
Product Description
LTN156AT32-701 15.6 inch 1366*768 tft LCD Screen display
LTN156AT32-701 Product details :
| Brand | Samsung |
| Model P/N | LTN156AT32-701 64 Compatible |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.232(W)×193.536(H) mm |
| Bezel Opening | 348.8(W)×197.0(H) mm |
| Outline Size | 359.3(W)×209.5(H)×5.5(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 16 (Typ.)(Tr+Td) |
| Display Colors | 262K 60%NTSC |
| Lamp Type | 4S1PWLED, 15K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Application | Laptop |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| LTN156AT32-701 15.6 inch 1366*768 tft LCD Screen display | |
LTN156AT32-701 Friendly Reminder :
- Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.
- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
- Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.
LTN156AT32-701 Shippment & Packing
LTN156AT32-701 Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
LTN156AT32-701 Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.We offer a 30days Money back or replacement.
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition. Each item is pasted with a warranty label, please do not tear up the label.
LTN156AT32-701 FAQ:
Q: How to order Samsung lcd panel LTN156AT32-701 ?
A: We accept the T/T , Western union , paypal .
Q: How long the warranty of LTN156AT32-701 ?
A: 90days.
Q: What happen if the LTN156AT32-701 I received can't work ?
A: Our Samsung LTN156AT32-701 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can you declared low price of my 15.6 inch TFT-LCD LTN156AT32-701 when shipping?
A: Yes , please inform us the value you want .
