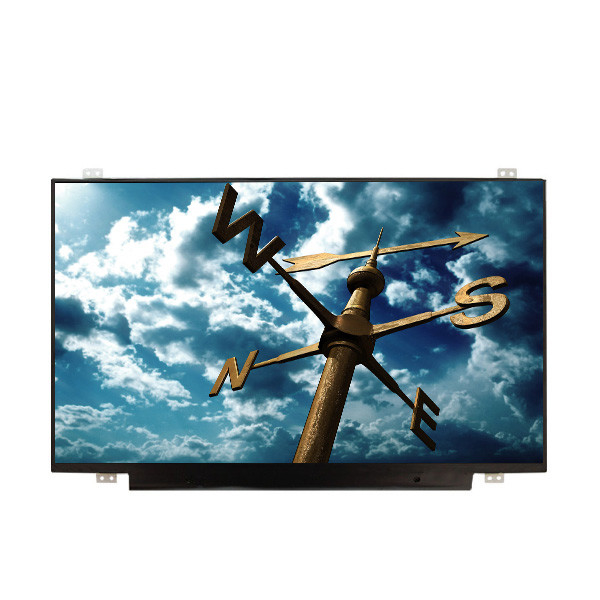

B140HTN01.C 14.0 inch 1920*1080 TFT-LCD SCREEN LCD Display
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B140HTN01.C |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B140HTN01.C | Resolution: | 1920(RGB)×1080, FHD 157PPI |
---|---|---|---|
Active Area: | 309.14(W)×173.89(H) Mm | Brightness: | 220 Cd/m² (Typ.) |
Contrast Ratio: | 400:1 (Typ.) (TM) | Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) |
Display Mode: | TN, Normally White, Transmissive | Frame Rate: | 60Hz |
Interface Type: | EDP (2 Lanes), 30 PinsConnector | Application: | Laptop |
Product Description
B140HTN01.C 14.0 inch 1920*1080 TFT-LCD SCREEN LCD Display
B140HTN01.C LCD Panel Product details :
Brand | AUO |
---|---|
Model P/N | B140HTN01.C |
Diagonal Size | 14.0" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1080, FHD 157PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 309.14(W)×173.89(H) mm |
Bezel Opening | - |
Outline Dim. | 320.4(W)×205.1(H)×3(D) mm |
Treatment | Glare (Haze 0%), Hard coating (3H) |
Luminance | 220 cd/m² (Typ.) |
Contrast Ratio | 400:1 (Typ.) (TM) |
View Direction | 6 o'clock |
Response Time | 8 (Typ.)(Tr+Td) |
Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
Operating Mode | TN, Normally White, Transmissive |
Support Color | 262K 45%NTSC |
Light Source | WLED, 15K hours, With LED Driver |
Form Style | Slim (PCBA Flat, T≤3.2mm) |
Designed For | Laptop |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | eDP (2 Lanes), 30 pinsConnector |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
B140HTN01.C 14.0 inch 1920*1080 TFT-LCD SCREEN LCD Display |
B140HTN01.C LCD Panel Shipping and Package :
B140HTN01.C LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods B140HTN01.C ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of B140HTN01.C ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of B140HTN01.C to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
