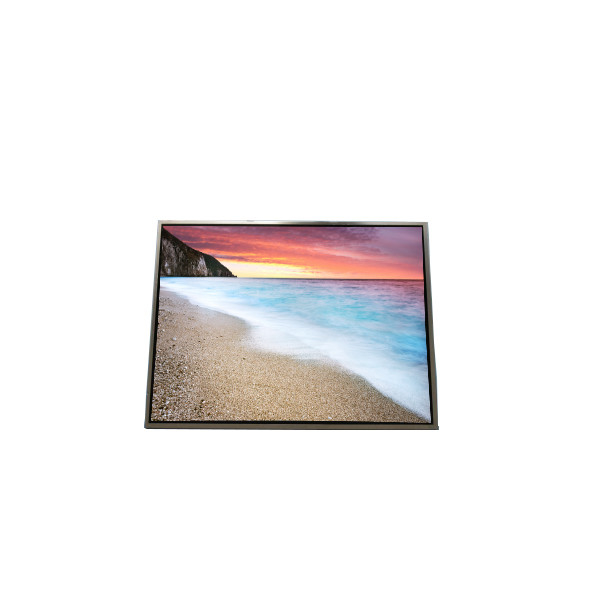

LTN150XG-L02 LCD Screen 15.0 inch LCD display TFT Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTN150XG-L02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LTN150XG-L02 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 85PPI | Active Area: | 304.128(W)×228.096(H) Mm |
| Outline Dim.: | 317.3(H)×242(V)×6.5(D) Mm | Application: | Laptop |
| Interface Type: | LVDS (1 Ch, 6-bit), 30 PinsConnector | Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) |
Product Description
LTN150XG-L02 LCD Screen 15.0 inch LCD display TFT Module
LTN150XG-L02 Product details :
| Brand | Samsung |
| Model P/N | LTN150XG-L02 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.5(W)×231.4(H) mm |
| Outline Dim. | 317.3(H)×242(V)×6.5(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (2H) |
| Luminance | 280 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Min.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 10/30 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 41%NTSC |
| Light Source | CCFL [1 pcs], 10K hours, W/O Driver |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit), 30 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LTN150XG-L02 LCD Screen 15.0 inch LCD display TFT Module | |
LTN150XG-L02 Friendly Reminder :
- Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.
- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
- Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.
LTN150XG-L02 Shippment & Packing
LTN150XG-L02 Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
LTN150XG-L02 Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.We offer a 30days Money back or replacement.
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition. Each item is pasted with a warranty label, please do not tear up the label.
LTN150XG-L02 FAQ:
Q: How long is the warranty of LTN150XG-L02 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of LTN150XG-L02 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of LTN150XG-L02 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods LTN150XG-L02 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
