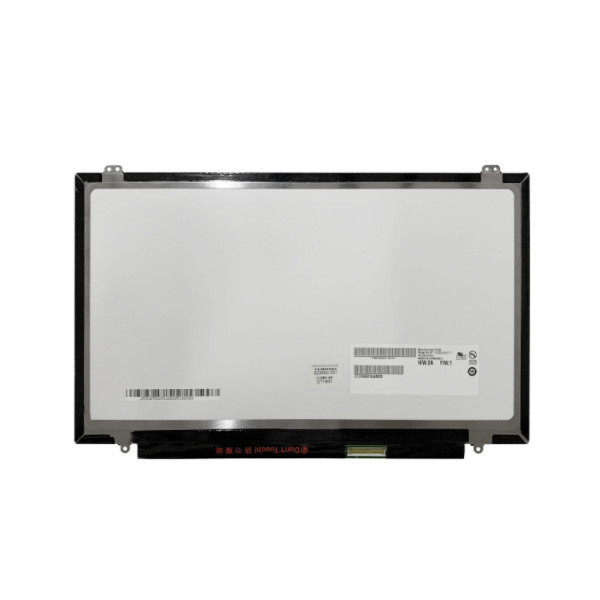

B140QAN01.2 14.0 inch 2560*1440 TFT-LCD SCREEN PANEL
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B140QAN01.2 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B140QAN01.2 | Resolution: | 2560(RGB)×1440, Quad-HD 210PPI |
---|---|---|---|
Active Area: | 309.35(W)×174.01(H) Mm | Display Colors: | 16.7M |
Contrast Ratio: | 700:1 (Typ.) (TM) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
Display Mode: | AHVA, Normally Black, Transmissive | Response Time: | 30 (Typ.)(Tr+Td) |
Lamp Type: | WLED, 15K Hours | Application: | Laptop |
Product Description
B140QAN01.2 14.0 inch 2560*1440 TFT-LCD SCREEN PANEL
B140QAN01.2 LCD Panel Product details :
Brand | AUO |
---|---|
Model P/N | B140QAN01.2 |
Diagonal Size | 14.0" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 2560(RGB)×1440, Quad-HD 210PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 309.35(W)×174.01(H) mm |
Bezel Opening | - |
Luminance | - |
Contrast Ratio | 700:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 30 (Typ.)(Tr+Td) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Operating Mode | AHVA, Normally Black, Transmissive |
Support Color | 16.7M 72%NTSC |
Light Source | WLED, 15K hours |
Form Style | Slim (PCBA Bent, T≤3.0mm) |
Designed For | Laptop |
Frame Rate | - |
Touch Panel | Without |
Interface Type | eDP (4 Lanes) |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
B140QAN01.2 14.0 inch 2560*1440 TFT-LCD SCREEN PANEL |
B140QAN01.2 LCD Panel Shipping and Package :
B140QAN01.2 LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How to make payment of B140QAN01.2 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of B140QAN01.2 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can You declare my order of B140QAN01.2 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
