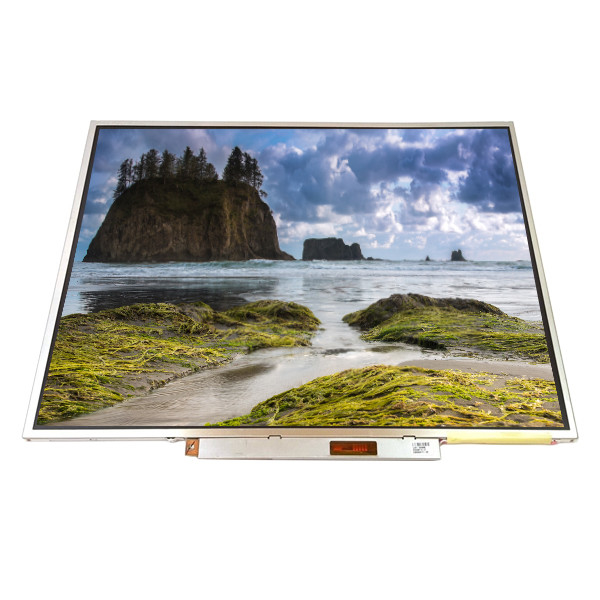

LTN150PF-L04 15.0 Inch 1400*1050 TFT LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTN150PF-L04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LTN150PF-L04 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1400(RGB)×1050, SXGA+ 116PPI | Active Area: | 304.5(W)×228.375(H) Mm |
| Outline Dim.: | 317.3(W)×242.1(H)×6(D) Mm | Application: | Laptop |
| Interface Type: | LVDS (2 Ch, 6-bit), 30 PinsConnector | Viewing Angle: | 60/60/45/45 (Typ.)(CR≥10) |
Product Description
LTN150PF-L04 15.0 Inch 1400*1050 TFT LCD Screen Display
LTN150PF-L04 Product details :
| Brand | Samsung |
| Model P/N | LTN150PF-L04 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1400(RGB)×1050, SXGA+ 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.5(W)×228.375(H) mm |
| Bezel Opening | - |
| Outline Size | 317.3(W)×242.1(H)×6(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Viewing Angle | 60/60/45/45 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | - |
| Response Time | 10/30 (Typ.)(Tr/Td) |
| Display Colors | 262K 42%NTSC |
| Lamp Type | 1 pcsCCFL, 15K hours, With Inverter |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Application | Laptop |
| Signal Interface | LVDS (2 ch, 6-bit), 30 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| LTN150PF-L04 15.0 Inch 1400*1050 TFT LCD Screen Display | |
LTN150PF-L04 Friendly Reminder :
- Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.
- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
- Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.
LTN150PF-L04 Shippment & Packing
LTN150PF-L04 Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
LTN150PF-L04 Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.We offer a 30days Money back or replacement.
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition. Each item is pasted with a warranty label, please do not tear up the label.
LTN150PF-L04 FAQ:
Q: How long will I receive my goods LTN150PF-L04 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: If I place order now,when will you ship the goods of LTN150PF-L04 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of LTN150PF-L04 ?
A: Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
