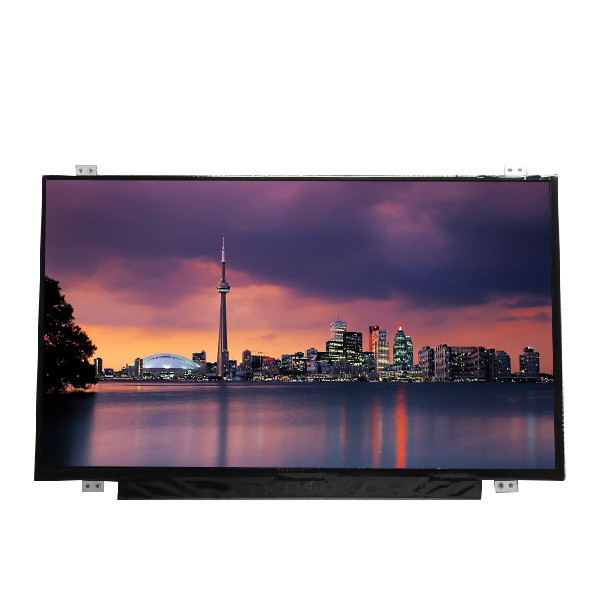

B140RTN02.1 14.0 inch 1600*900 TFT-LCD SCREEN PANEL
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B140RTN02.1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B140RTN02.1 | Resolution: | 1600(RGB)×900, HD+ 131PPI |
---|---|---|---|
Active Area: | 309.6(W)×174.15(H) Mm | Luminance: | 300 Cd/m² (Typ.) |
Contrast Ratio: | 600:1 (Typ.) (TM) | Viewing Angle: | 70/70/60/60 (Typ.)(CR≥10) |
Display Mode: | TN, Normally White, Transmissive | Response Time: | 8 (Typ.)(Tr+Td) |
Lamp Type: | WLED, 15K Hours, With LED Driver | Application: | Laptop |
Product Description
B140RTN02.1 14.0 inch 1600*900 TFT-LCD SCREEN PANEL
B140RTN02.1 LCD Panel Product details :
Brand | AUO |
---|---|
Model P/N | B140RTN02.1 |
Diagonal Size | 14.0" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1600(RGB)×900, HD+ 131PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 309.6(W)×174.15(H) mm |
Bezel Opening | - |
Outline Size | 320.4(W)×205.1(H)×3.6(D) mm |
Surface | Glare (Haze 0%), Hard coating (3H), Reflection 4.3% (Typ.) |
Brightness | 300 cd/m² (Typ.) |
Contrast Ratio | 600:1 (Typ.) (TM) |
Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive |
Best View on | 6 o'clock |
Response Time | 8 (Typ.)(Tr+Td) |
Display Colors | 262K 45%NTSC |
Lamp Type | WLED, 15K hours, With LED Driver |
Frequency | 60Hz |
Touch Screen | Without |
Shape Style | Flat (PCBA Flat, T3.4~4.0mm) |
Application | Laptop |
Signal Interface | LVDS (2 ch, 6-bit), 40 pins Connector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
B140RTN02.1 14.0 inch 1600*900 TFT-LCD SCREEN PANEL |
B140RTN02.1 LCD Panel Shipping and Package :
B140RTN02.1 LCD Panel FAQ :
Q: Can You declare my order of B140RTN02.1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How to make payment of B140RTN02.1 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of B140RTN02.1 ?
A: we will give you tracking number then you can trace your order from website.
