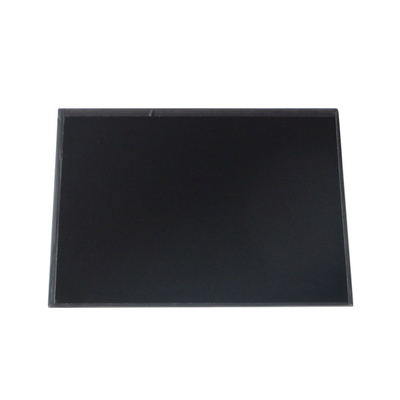

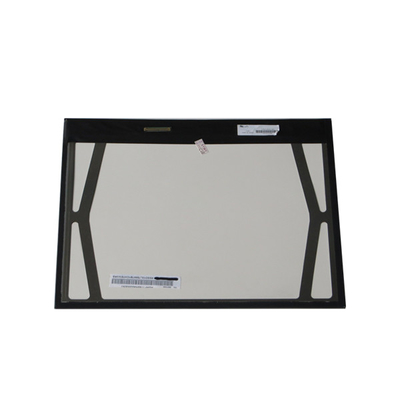

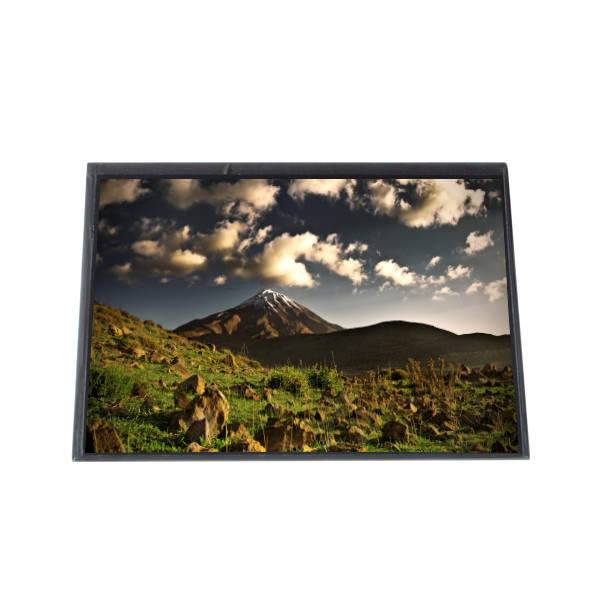

LTN121XL01-N03 12.1 inch 1024*768 LCD Panel Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTN121XL01-N03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTN121XL01-N03 | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 105PPI | Active Area: | 245.76(W)×184.32(H) Mm |
| Outline Size: | 257.3(W)×199.1(H)×4.75(D) Mm | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| Luminance: | 300 Cd/m² (Typ.) | Designed For: | Laptop |
| Signal Interface: | LVDS (1 Ch, 6-bit), 40 PinsConnector | Contrast Ratio: | 700:1 (Typ.) (TM) |
Product Description
LTN121XL01-N03 12.1 inch 1024*768 LCD Panel Screen
LTN121XL01-N03 LCD Panel Product details :
| Brand | Samsung |
|---|---|
| Model P/N | LTN121XL01-N03 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 105PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 245.76(W)×184.32(H) mm |
| Bezel Opening | - |
| Outline Size | 257.3(W)×199.1(H)×4.75(D) mm |
| Brightness | 300 cd/m² (Typ.) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 262K 47%NTSC |
| Frequency | 60Hz |
| Shape Style | - |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Display Mode | PLS, Normally Black, Transmissive |
| Response Time | 30 (Typ.)(Tr+Td) |
| Lamp Type | 9S4P WLED , 10K hours , With LED Driver |
| Touch Screen | Without |
| Application | Laptop |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 45 °C ;Storage Temp.: -20 ~ 60 °C |
| LTN121XL01-N03 12.1 inch 1024*768 LCD Panel Screen | |
LTN121XL01-N03 LCD Screen Payment :
Payment Methods: We accept payments through Alipay, Credit card, bank transfer, Western Union, Moneybooker, and other online payment platforms. You can choose the method that best suits your preferences and convenience.
Payment Deadline: Payment must be completed within 3 days of placing your order. This ensures timely processing and delivery of your purchase.
Checkout Process: If you encounter any difficulties during the checkout process after the auction closes, we kindly ask for your patience. Sometimes, delays may occur due to technical reasons. Please retry the payment process after waiting for a few minutes. Remember, payments must still be finalized within the 3-day deadline.
LTN121XL01-N03 LCD Screen note :
1. Is the LCD model searched by the search engine consistent with the one you need to buy? Some models look similar, but in fact there will be one or two letters or numbers that are different, which will lead to the difference between what you buy and what you actually need. In addition, there are a few LCD screens of the same model, which will have several LCD interfaces. So you must carefully compare the LCD model, LCD interface and LCD bracket.
2. Many buyers can't tell whether they need to buy a separate LCD screen or a LCD assembly, resulting in many buyers choosing the wrong products. But before you buy a LCD screen, please try to separate your LCD screen from the cover in front of the notebook. If you can easily separate it, you can buy a LCD screen separately. If it is difficult to separate, it is likely to be full of glue. You need to go to a professional maintenance site for freeze separation. I suggest you buy LCD assembly
3. Because there are a wide variety of LCD models, many models are compatible with each other, so all LCD screens in my store are sent according to the general compatible models selected according to the inventory. It is not guaranteed to send the same model, so please pay attention. If you need a special model, you must communicate with customer service to confirm before purchasing.
LTN121XL01-N03 LCD Panel Shipping and Package :
LTN121XL01-N03 LCD screen possible purchase groups:
We are pleased to offer you a bundle option with the LTN121XL01-N03 LCD display. We would like to inform you that our shipping charges are non-negotiable. If these conditions do not apply to you, we recommend that you do not bid. These costs include not only postage costs but also administrative costs, miscellaneous supplies, handling costs and VAT.
We assure you that our P&P pricing includes postage, padded envelopes and administration fees. If you do not agree to these administrative fees, we kindly invite you not to purchase.
Thank you very much for your understanding and cooperation. If you have any questions or concerns, please feel free to contact us. We are here to help you.
LTN121XL01-N03 LCD Panel FAQ :
Q: How long is the warranty of LTN121XL01-N03 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of LTN121XL01-N03 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of LTN121XL01-N03 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods LTN121XL01-N03 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
