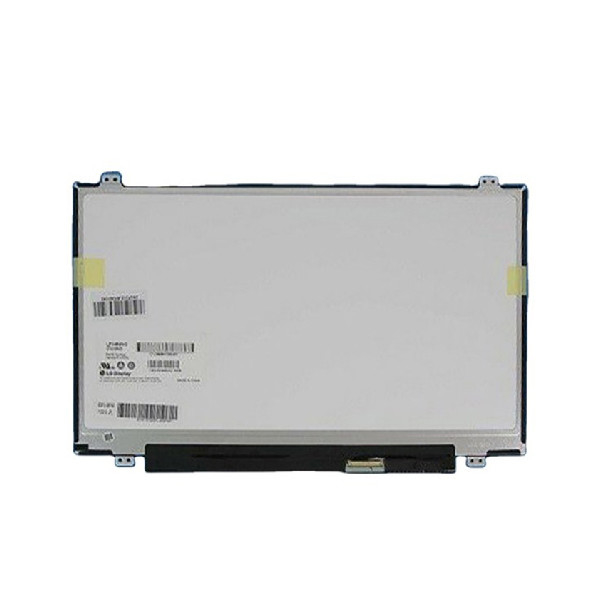

B140XTN06.2 14.0 inch 1366*768 For Laptop TFT-LCD SCREEN
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B140XTN06.2 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B140XTN06.2 | Resolution: | 1366(RGB)×768, WXGA 112PPI |
---|---|---|---|
Active Area: | 309.399(W)×173.952(H) Mm | Luminance: | 220 Cd/m² (Typ.) |
Contrast Ratio: | 500:1 (Typ.) (TM) | Operating Mode: | TN, Normally White, Transmissive |
Support Color: | 262K 45% NTSC | Light Source: | WLED, 15K Hours , With LED Driver |
Designed For: | Laptop | Interface Type: | EDP (1 Lane), EDP1.2, 40 PinsConnector |
Product Description
B140XTN06.2 14.0 inch 1366*768 For Laptop TFT-LCD SCREEN
B140XTN06.2 LCD Panel Product details :
Brand | AUO |
---|---|
Model P/N | B140XTN06.2 |
Diagonal Size | 14.0" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1366(RGB)×768, WXGA 112PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 309.399(W)×173.952(H) mm |
Bezel Opening | - |
Outline Size | 326.18(W)×205.1(H)×3(D) mm |
Surface | Glare (Haze 0%), Hard coating (3H) |
Brightness | 220 cd/m² (Typ.) |
Contrast Ratio | 500:1 (Typ.) (TM) |
Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive |
Best View on | 6 o'clock |
Response Time | 2/6 (Typ.)(Tr/Td) |
Display Colors | 262K 45%NTSC |
Lamp Type | WLED, 15K hours, With LED Driver |
Frequency | 60Hz |
Touch Screen | Without |
Shape Style | Slim (PCBA Flat, T≤3.2mm) |
Application | Laptop |
Signal Interface | eDP (1 Lane), eDP1.2, 40 pinsConnector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
B140XTN06.2 14.0 inch 1366*768 For Laptop TFT-LCD SCREEN |
B140XTN06.2 LCD Panel FAQ :
Q: Can I pay my order of B140XTN06.2 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders of B140XTN06.2 ?
A: Of course!sample order is welcome !
Q: Can You declare my order of B140XTN06.2 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of B140XTN06.2 ?
A: Of course!If you make a large order, we will give you a discount.
