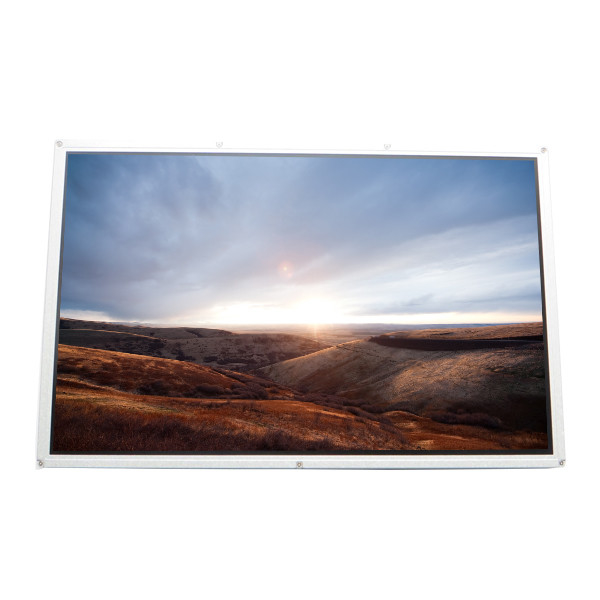

LTM270M1-L01 27.0 inch 1920*1200 LCD Display Screen

Brand Name:	Samsung
Model Number:	LTM270M1-L01
MOQ:	1pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LTM270M1-L01

Diagonal Size:

27.0"

Resolution:

1920(RGB)×1200, WUXGA 83PPI

Active Area:

581.76(W)×363.6(H) Mm

Outline Size:

615.8(W)×397.6(H)×42.6(D) Mm

Luminance:

500 Cd/m² (Typ.)

Designed For:

Desktop Monitor

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Panel Weight:

3.80Kgs (Max.)

Signal Interface:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LTM270M1-L01 27.0 inch 1920*1200 LCD Display Screen

LTM270M1-L01 LCD Panel Product details :

Brand	Samsung
Model P/N	LTM270M1-L01
Diagonal Size	27.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1200, WUXGA 83PPI
Pixel Format	RGB Vertical Stripe
Active Area	581.76(W)×363.6(H) mm
Bezel Opening	586.8(W)×368.6(H) mm
Outline Size	615.8(W)×397.6(H)×42.6(D) mm
Surface	Antiglare (Haze 44%), Hard coating (3H)
Brightness	500 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	S-PVA, Normally Black, Transmissive
Best View on	Symmetry
Response Time	16 (Typ.)(Tr+Td), 6 (Typ.)(G to G)
Display Colors	16.7M 92%NTSC
Lamp Type	16 pcsCCFL, 30K hours, With Inverter
Frequency	60Hz
Touch Screen	Without
Panel Weight	3.80Kgs (Max.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C
LTM270M1-L01 27.0 inch 1920*1200 LCD Display Screen

LTM270M1-L01 LCD Screen Payment :

Payment Methods: We accept payments through Alipay, Credit card, bank transfer, Western Union, Moneybooker, and other online payment platforms. You can choose the method that best suits your preferences and convenience.

Payment Deadline: Payment must be completed within 3 days of placing your order. This ensures timely processing and delivery of your purchase.

Checkout Process: If you encounter any difficulties during the checkout process after the auction closes, we kindly ask for your patience. Sometimes, delays may occur due to technical reasons. Please retry the payment process after waiting for a few minutes. Remember, payments must still be finalized within the 3-day deadline.

LTM270M1-L01 LCD Screen note :

1. Is the LCD model searched by the search engine consistent with the one you need to buy? Some models look similar, but in fact there will be one or two letters or numbers that are different, which will lead to the difference between what you buy and what you actually need. In addition, there are a few LCD screens of the same model, which will have several LCD interfaces. So you must carefully compare the LCD model, LCD interface and LCD bracket.

2. Many buyers can't tell whether they need to buy a separate LCD screen or a LCD assembly, resulting in many buyers choosing the wrong products. But before you buy a LCD screen, please try to separate your LCD screen from the cover in front of the notebook. If you can easily separate it, you can buy a LCD screen separately. If it is difficult to separate, it is likely to be full of glue. You need to go to a professional maintenance site for freeze separation. I suggest you buy LCD assembly

3. Because there are a wide variety of LCD models, many models are compatible with each other, so all LCD screens in my store are sent according to the general compatible models selected according to the inventory. It is not guaranteed to send the same model, so please pay attention. If you need a special model, you must communicate with customer service to confirm before purchasing.

LTM270M1-L01 LCD Panel Shipping and Package :

LTM270M1-L01 LCD screen possible purchase groups:

We are pleased to offer you a bundle option with the LTM270M1-L01 LCD display. We would like to inform you that our shipping charges are non-negotiable. If these conditions do not apply to you, we recommend that you do not bid. These costs include not only postage costs but also administrative costs, miscellaneous supplies, handling costs and VAT.

We assure you that our P&P pricing includes postage, padded envelopes and administration fees. If you do not agree to these administrative fees, we kindly invite you not to purchase.

Thank you very much for your understanding and cooperation. If you have any questions or concerns, please feel free to contact us. We are here to help you.

LTM270M1-L01 LCD Panel FAQ :

Q: How long is the warranty of LTM270M1-L01 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of LTM270M1-L01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of LTM270M1-L01 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods LTM270M1-L01 by credit card ?

A: Yes!you can use your credit card through your Paypal account.
