LTM230HU04 23.0 inch LCD Screen Module For Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTM230HU04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTM230HU04 | Screen Size: | 23.0inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 95PPI | Used For: | Desktop Monitor / Gaming |
| Active Area: | 509.76(W)×286.74(H) Mm | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| Signal Type: | LVDS (4 Ch, 8-bit) , 82 Pins Connector | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C |
Product Description

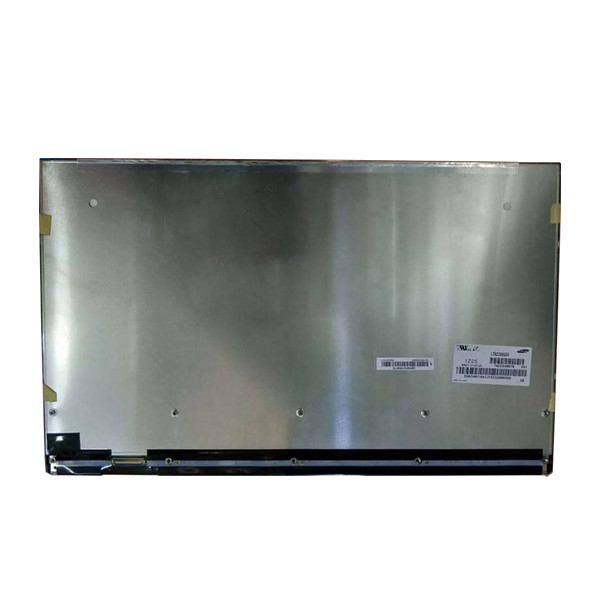

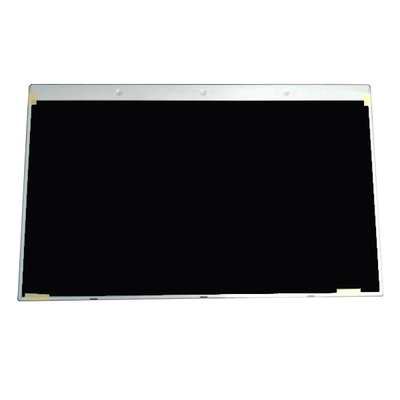

LTM230HU04 23.0 inch LCD Screen Module For Desktop Monitor
Product details :
| Samsung LCD Screen LTM230HU04 | |
|---|---|
| Manufacturer | Samsung |
| Model Name | LTM230HU04 |
| Screen Size | 23.0inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 95PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 509.76(W)×286.74(H) mm |
| Bezel Opening | - |
| Outline (mm) | - |
| Treatment | - |
| Luminance | - |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 3 (Typ.)(Tr+Td) |
| View Direction | Symmetry |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | WLED |
| Mass | - |
| Used for | Gaming Desktop Monitor |
| Refresh Rate | 120Hz |
| Touchscreen | Without |
| Signal Type | LVDS (4 ch, 8-bit) , 82 pins Connector |
| Voltage Supply | 15.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C |
| LTM230HU04 23.0 inch LCD Screen Module For Desktop Monitor | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping:
You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.
FAQ:
Q: Can You declare my order of LTM230HU04 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: If I place order now,when will you ship the goods of LTM230HU04?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of LTM230HU04 via credit card ?
A:Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
