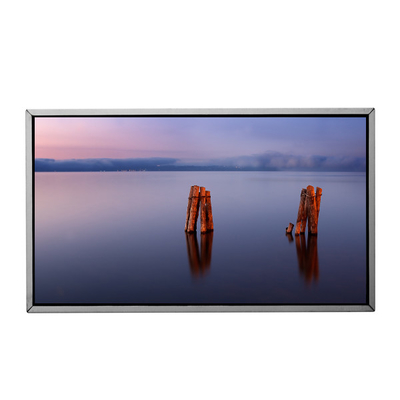

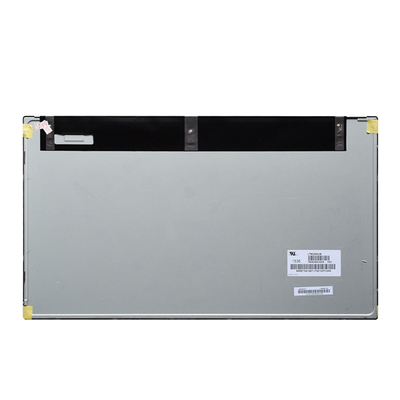

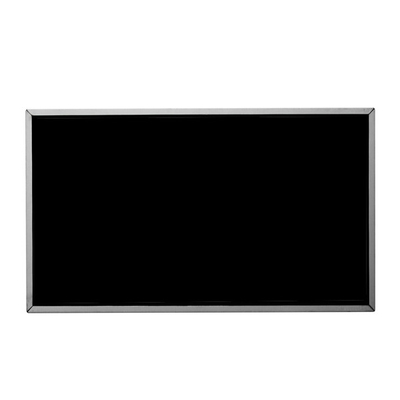

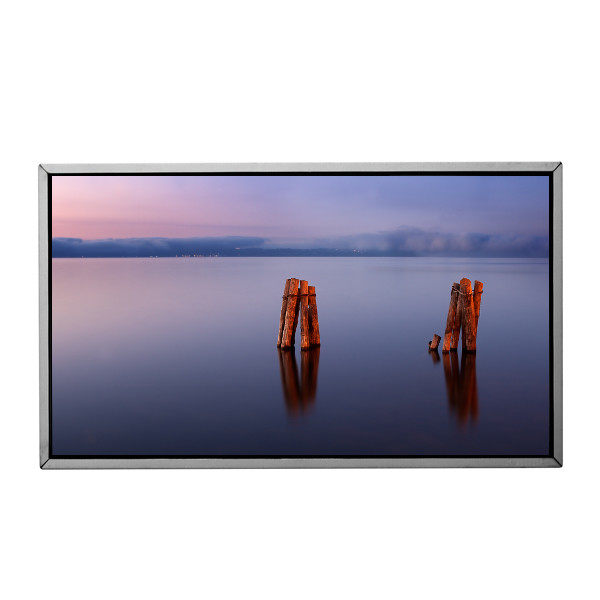

LTM230HL08 23.0 inch LCD Display Panel for Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTM230HL08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTM230HL08 | Screen Size: | 23.0inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 95PPI | Used For: | Desktop Monitor |
| Active Area: | 509.184(W)×286.416(H) Mm | Outline (mm): | 533.2 × 312 × 11 (H×V×D) |
| Luminance: | 250 Cd/m² (Typ.) | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Signal Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector | Environment: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50°C |
Product Description
LTM230HL08 23.0 inch LCD Display Panel for Desktop Monitor
Product details :
| Samsung LCD Screen LTM230HL08 | |
|---|---|
| Manufacturer | Samsung |
| Model Name | LTM230HL08 |
| Screen Size | 23.0inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 95PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 509.184(W)×286.416(H) mm |
| Bezel Opening | 513.8(W)×291.0(H) mm |
| Outline (mm) | 533.2 × 312 × 11 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 12 (Typ.)(G to G) ms |
| View Direction | Symmetry |
| Operating Mode | PLS, Normally Black, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | 12S3P WLED , 40K hours , No Driver |
| Mass | 2.30Kgs (Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LTM230HL08 23.0 inch LCD Display Panel for Desktop Monitor | |
