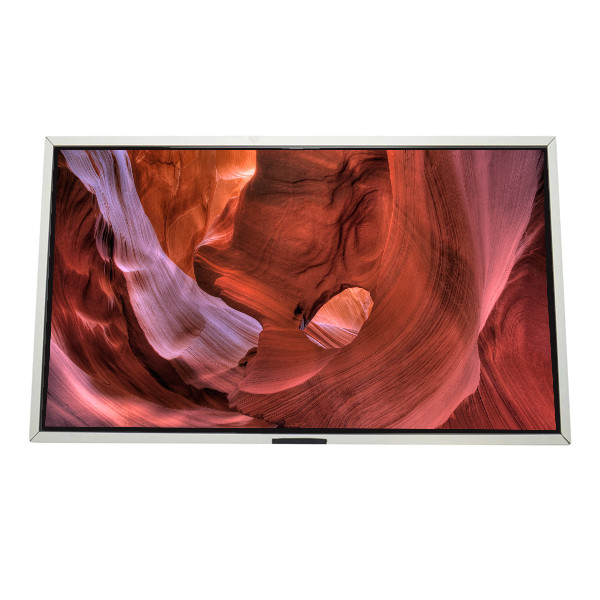

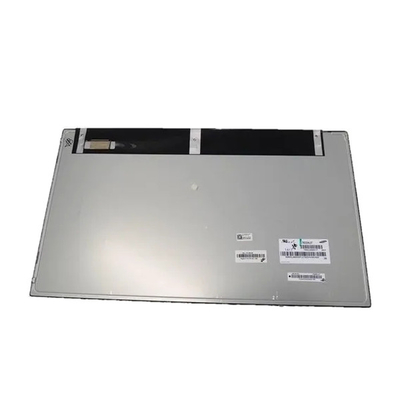

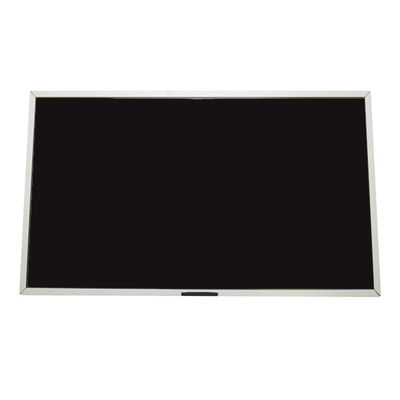

LTM230HL07 23.0 inch 1920*1080 LCD display for Dell Inspiron 2350
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTM230HL07 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTM230HL07 | Screen Size: | 23.0inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 95PPI | Used For: | Desktop Monitor |
| Active Area: | 509.184(W)×286.416(H) Mm | Outline (mm): | 533.2(W)×312(H) ×11(D) Mm |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Luminance: | 300 Cd/m² (Typ.) |
| Signal Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Mass: | 2.30Kgs (Max.) | ||
Product Description
LTM230HL07 23.0 inch 1920*1080 LCD display for Dell Inspiron 2350
Product details :
| Samsung LCD Screen LTM230HL07 | |
|---|---|
| Manufacturer | Samsung |
| Model Name | LTM230HL07 |
| Screen Size | 23.0inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 95PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 509.184(W)×286.416(H) mm |
| Bezel Opening | 513.8(W)×291(H) mm |
| Outline (mm) | 533.2(W)×312(H) ×11(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14 (Typ.)(G to G) |
| View Direction | Symmetry |
| Operating Mode | PLS, Normally Black, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | 11S3P WLED , 40K hours , Without Driver |
| Mass | 2.30Kgs (Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LTM230HL07 23.0 inch 1920*1080 LCD display for Dell Inspiron 2350 | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping:
You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.
FAQ:
Q: Can I pay my goods LTM230HL07 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods LTM230HL07 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: Can you give me a discount if I need a large quantity of LTM230HL07 ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of LTM230HL07 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
