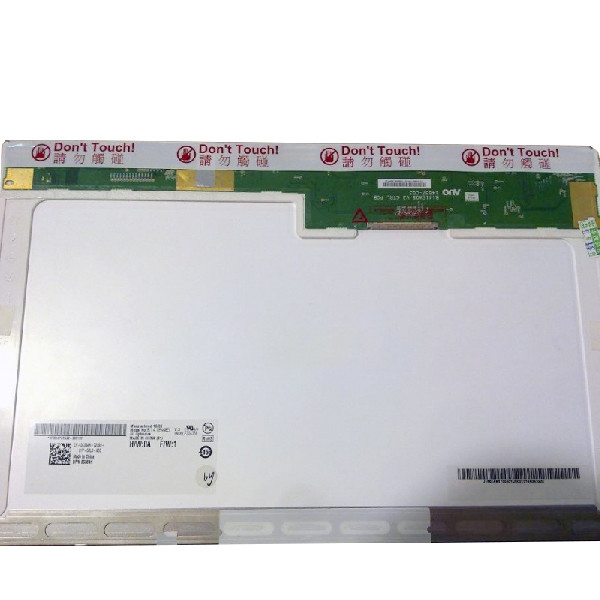

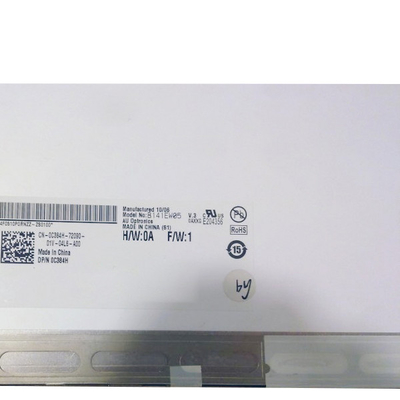

B141EW05 V3 14.1 inch 1280*800 LCD Display TFT-LCD SCREEN
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B141EW05 V3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B141EW05 V3 | Resolution: | 1280(RGB)×800 WXGA 107PPI |
|---|---|---|---|
| Active Area: | 303.74(H)×189.84(V) Mm | Brightness: | 220 Cd/m² (Typ.) |
| Contrast Ratio: | 400:1 (Typ.) (Transmission) | Viewing Angle: | 45/45/15/35 (Typ.) (CR≥10) |
| Refresh Rate: | 60Hz | Signal Interface: | LVDS (1 Ch, 6-bit) , Terminal, 40 Pins |
Product Description
B141EW05 V3 14.1 inch 1280*800 LCD Display TFT-LCD SCREEN
B141EW05 V3 LCD Panel Product details :
| AUO LCD SCREEN B141EW05 V3 | |
|---|---|
| Panel Brand | AUO |
| Panel Model | B141EW05 V3 |
| Panel Size | 14.1" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×800 WXGA 107PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 303.74(H)×189.84(V) mm |
| Bezel Opening | 307.0 × 193.20(H×V)mm |
| Outline Size | 319.5(H)×205.5(V)×5.5(D) mm |
| Surface | Mirror (Haze 0%), Hard coating (3H) |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (Transmission) |
| Viewing Angle | 45/45/15/35 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 10K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Signal Interface | LVDS (1 ch, 6-bit) , terminal, 40 pins |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -25 ~ 60 °C |
| B141EW05 V3 14.1 inch 1280*800 LCD Display TFT-LCD SCREEN | |
B141EW05 V3 LCD Screen , Please note the following important instructions:
We highly advise seeking professional assistance for installation. Please ensure that experienced technicians handle the installation process for you to avoid any damage or mishaps.
Upon receiving the package, it is imperative to promptly check and test the screen. This step helps to identify any potential issues or defects early on, facilitating timely resolutions.
Don't overlook the protective film on the back of the screen. It is essential to remove this film before installation to prevent any interference with the display quality. Note that there might be protective film layers on both sides, so make sure to remove them all.
Exercise caution during handling, and avoid applying excessive pressure, as the LCD screen is a delicate and fragile product. Mishandling or pressing too hard can lead to irreversible damage, impacting its functionality and longevity.
These guidelines aim to ensure the optimal performance and longevity of your B141EW05 V3 LCD screen.
