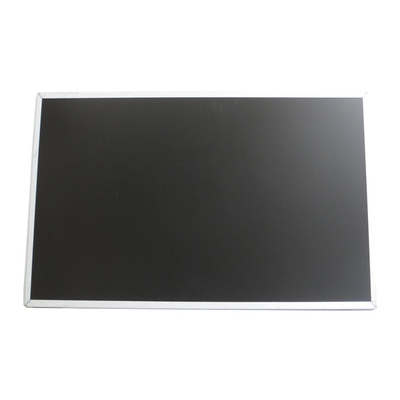

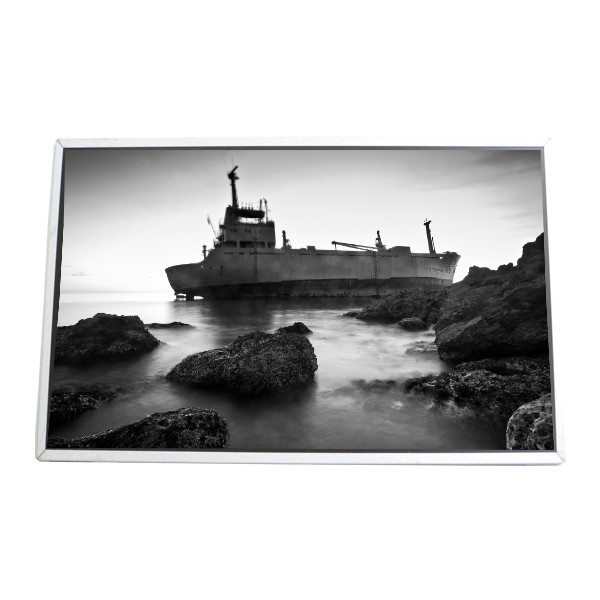

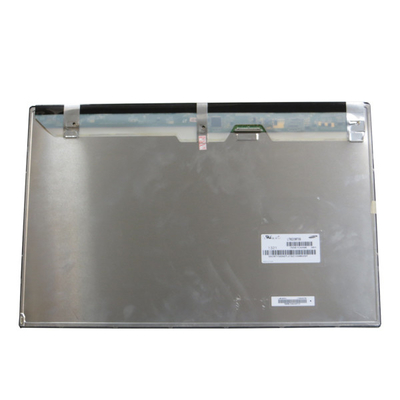

LTM220MT09 New LCD Screen Panel Monitor 22.0 inch 1680*1050 LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTM220MT09 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTM220MT09 | Screen Size: | 22.0inch |
|---|---|---|---|
| Resolution: | 1680(RGB)×1050, WSXGA+ 90PPI | Used For: | Desktop Monitor |
| Active Area: | 473.76(W)×296.1(H) Mm | Outline (mm): | 493.7 × 320.1 × 10.7 (H×V×D) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Luminance: | 250 Cd/m² (Typ.) |
| Signal Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Mass: | 1.90Kgs (Max.) | ||
Product Description
LTM220MT09 New LCD Screen Panel Monitor 22.0 inch 1680*1050 LCD Display
Product details :
| Samsung LCD Screen LTM220MT09 | |
|---|---|
| Manufacturer | Samsung |
| Model Name | LTM220MT09 |
| Screen Size | 22.0inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1680(RGB)×1050, WSXGA+ 90PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 473.76(W)×296.1(H) mm |
| Bezel Opening | 477.7(W)×300.1(H) mm |
| Outline (mm) | 493.7 × 320.1 × 10.7 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 5 (Typ.)(Tr+Td) ms |
| View Direction | - |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | 9S3P WLED , 30K hours , No Driver |
| Mass | 1.90Kgs (Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LTM220MT09 New LCD Screen Panel Monitor 22.0 inch 1680*1050 LCD Display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping:
You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.
FAQ:
Q: How can I trace my order of LTM220MT09 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods LTM220MT09 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of LTM220MT09 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of LTM220MT09 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
