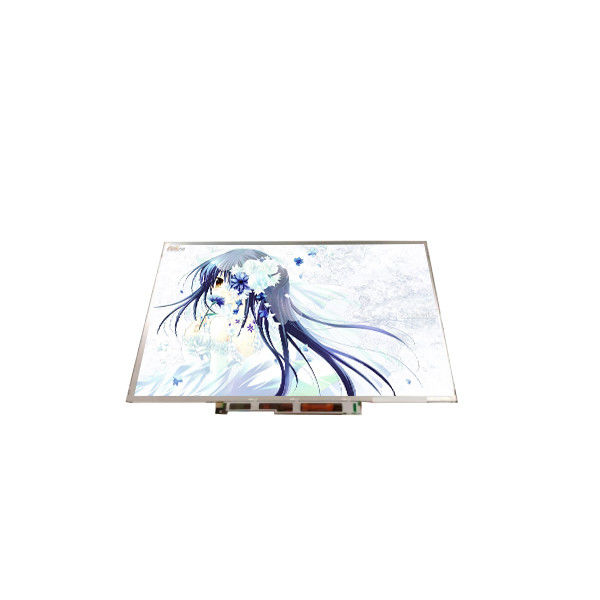

B141PN01 V1 14.1 inch 1440*900 TFT-LCD SCREEN LCD Display
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B141PN01 V1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B141PN01 V1 | Resolution: | 1440(RGB)×900 WXGA+ 120PPI |
---|---|---|---|
Active Area: | 303.48(W)×189.675(H) Mm | Brightness: | 175 Cd/m² (Typ.) |
Contrast Ratio: | 300:1 (Typ.) (Transmission) | Viewing Angle: | 40/40/10/30 (Typ.) (CR≥10) |
Refresh Rate: | 60Hz | Signal Interface: | 30 Pins LVDS (2 Ch, 6-bit) , Terminal |
Product Description
B141PN01 V1V0 14.1 inch 1440*900 TFT-LCD SCREEN LCD Display
B141PN01 V1 LCD Panel Product details :
AUO LCD SCREEN B141PN01 V1 | |
---|---|
Panel Brand | AUO |
Panel Model | B141PN01 V1 |
Panel Size | 14.1" |
Panel Type | a-Si TFT-LCD , LCM |
Resolution | 1400(RGB)×1050 SXGA+ 124PPI |
Pixel Format | RGB Vertical Stripe |
Display Area | 285.6(h)214.2(v) mm |
Bezel Opening | 290.0(h)×218.6(v) mm |
Outline Size | 298.5 (h) × 226.7 (v) × 5.5 (t) |
Surface | Matte, Hard coating (3H) |
Brightness | 175 cd/m² (Typ.) |
Contrast Ratio | 300:1 (Typ.) (Transmission) |
Viewing Angle | 40/40/10/30 (Typ.) (CR≥10) |
Display Mode | TN, Normally White, Transmissive |
Response Time | 10/15 (Typ.)(Tr/Td) ms |
Display Colors | 262K , 50% NTSC |
Lamp Type | 1 pcs CCFL , 15K hours, with inverter |
Frequency | 60Hz |
Touch Screen | Without |
Signal Interface | 30 pins LVDS (2 ch, 6-bit) , terminal |
Input Voltage | 3.3V (Typ.) |
Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -25 ~ 60 °C |
B141PN01 V1V0 14.1 inch 1440*900 TFT-LCD SCREEN LCD Display |
B141PN01 V1 LCD Panel Shipping and Package :
B141PN01 V1 LCD Panel FAQ :
Q: Can I pay my order of B141PN01 V1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of B141PN01 V1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of B141PN01 V1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods B141PN01 V1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
