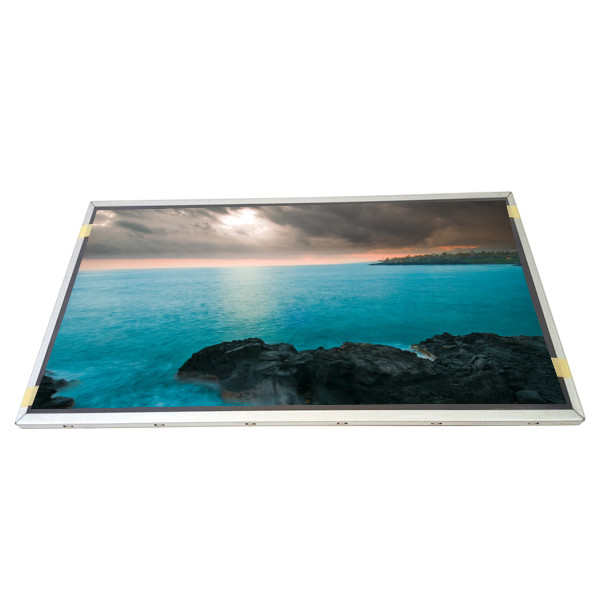

LTM215HT01 21.5 inch LCD Panel 1920*1080 LCD Screen

Brand Name:	Samsung
Model Number:	LTM215HT01
MOQ:	1pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LTM215HT01

Screen Size:

21.5inch

Resolution:

1920(RGB)×1080, FHD 102PPI

Used For:

Desktop Monitor

Active Area:

476.64(W)×268.11(H) Mm

Outline (mm):

495.6(W)×292.2(H)×17.5(D) Mm

Viewing Angle:

80/80/80/80 (Typ.)(CR≥10)

Luminance:

250 Cd/m² (Typ.)

Signal Type:

LVDS (2 Ch, 8-bit) , 30 Pins Connector

Environment:

Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50°C

Mass:

2.25Kgs (Max.)

Supply Ability:

100000 Unit/Units per Month

Product Description

LTM215HT01 21.5 inch LCD Panel 1920*1080 LCD Screen

Product details :

Samsung LCD Screen LTM215HT01
Manufacturer	Samsung
Model Name	LTM215HT01
Screen Size	21.5inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 102PPI
Pixel layout	RGB Vertical Stripe
Active Area	476.64(W)×268.11(H) mm
Bezel Opening	479.8(W)×271.3(H) mm
Outline (mm)	495.6(W)×292.2(H)×17.5(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing angle	80/80/80/80 (Typ.)(CR≥10)
Response	5 (Typ.)(Tr+Td) ms
View Direction	-
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 72% NTSC
Light Source	2 pcs CCFL , 50K hours , No Driver
Mass	2.25Kgs (Max.)
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit) , 30 pins Connector
Voltage Supply	5.0V (Typ.)
Environment	Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50°C
LTM215HT01 21.5 inch LCD Panel 1920*1080 LCD Screen

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

LTM215HT01 21.5 inch LCD Panel 1920*1080 LCD Screen 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

Shipping:

You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.

FAQ:

Q: Do you accept sample orders of LTM215HT01 ?

A: Of course! Sample order is welcome.

Q: Can I pay my order of LTM215HT01 vai credit card ?

A: Yes! You can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty.

Q: If I place order now, when will you ship the goods of LTM215HT01 ?

A: The order will be shipped within 2-3 working days after received your payment.
