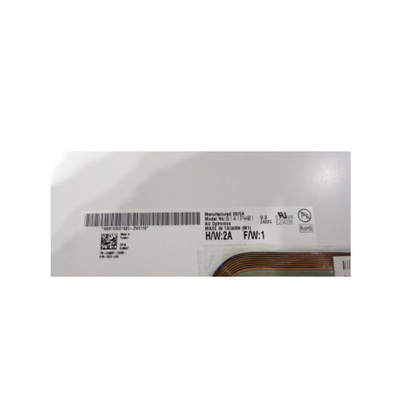

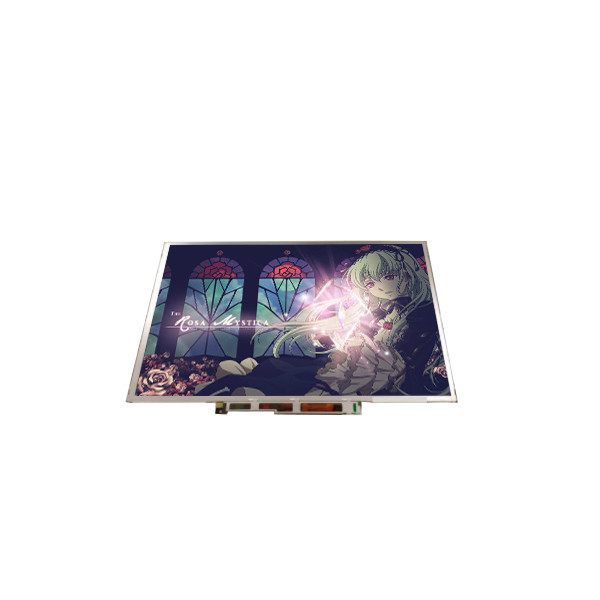

B141PW01 V0 14.1 inch 1440*900 TFT-LCD SCREEN LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B141PW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B141PW01 V0 | Resolution: | 1440(RGB)×900 WXGA+ 120PPI |
|---|---|---|---|
| Active Area: | 303.48(W)×189.675(H) Mm | Brightness: | 220 Cd/m² (Typ.) |
| Contrast Ratio: | 400:1 (Typ.) (Transmission) | Viewing Angle: | 45/45/20/35 (Typ.) (CR≥10) |
| Refresh Rate: | 60Hz | Signal Interface: | LVDS (2 Ch, 6-bit) , 30 Pins Connector |
Product Description
B141PW01 V0 14.1 inch 1440*900 TFT-LCD SCREEN LCD Display
B141PW01 V0 LCD Panel Product details :
| AUO LCD SCREEN B141PW01 V0 | |
|---|---|
| manufacturer | AUO |
| Model Name | B141PW01 V0 |
| screen size | 14.1 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1440(RGB)×900 (WXGA+) 120PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 303.48 × 189.675 (H×V) |
| physical dimension | 319.5 × 218 × 5.5 (H×V×D) |
| Visual size | 306.76 × 193.0 (H×V) |
| surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 220 cd/m² (Typ.) |
| Contrast | 400:1 (Typ.) (TM) |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 45/45/20/35 (Typ.)(CR≥10) |
| Responding time | 15/10 (Typ.)(Tr/Td) ms |
| Number of color | 262K 45% NTSC |
| Backlight type | 1 pcs CCFL , 10K hours , No Driver |
| Refresh rate | 60Hz |
| signal system | LVDS (2 ch, 6-bit) , 30 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B141PW01 V0 14.1 inch 1440*900 TFT-LCD SCREEN LCD Display | |
B141PW01 V0 LCD Screen , Please note the following important instructions:
We highly advise seeking professional assistance for installation. Please ensure that experienced technicians handle the installation process for you to avoid any damage or mishaps.
Upon receiving the package, it is imperative to promptly check and test the screen. This step helps to identify any potential issues or defects early on, facilitating timely resolutions.
Don't overlook the protective film on the back of the screen. It is essential to remove this film before installation to prevent any interference with the display quality. Note that there might be protective film layers on both sides, so make sure to remove them all.
Exercise caution during handling, and avoid applying excessive pressure, as the LCD screen is a delicate and fragile product. Mishandling or pressing too hard can lead to irreversible damage, impacting its functionality and longevity.
These guidelines aim to ensure the optimal performance and longevity of your B141PW01 V0 LCD screen.
B141PW01 V0 LCD Panel Shipping and Package :
B141PW01 V0 LCD Screen Packing Instructions:
To ensure the utmost protection during transit, we employ a comprehensive packing procedure for the B141PW01 V0 LCD Screen:
Antistatic Bag: The screen is first carefully placed within an antistatic bag. This specialized bag prevents any static electricity buildup, safeguarding the sensitive electronic components from potential damage.
Bubble Bag: Next, the screen is enveloped in a bubble bag. This layer serves as an additional cushioning barrier, shielding the screen from impacts and vibrations that may occur during handling and transportation.
Bubble Chamber: Following the bubble bag, the screen is nestled within a bubble chamber. This chamber provides an extra layer of protection, ensuring that the screen remains securely cushioned and insulated from external forces throughout its journey.
Suitable Hard Carton: Finally, the screen, meticulously packed in its antistatic bag, bubble bag, and bubble chamber, is placed inside a sturdy hard carton. This carton is specifically chosen for its durability and strength, offering optimal protection against bumps, jolts, and compression during shipping.
By adhering to this meticulous packing process, we guarantee that yourB141PW01 V0 Screen arrives at its destination in pristine condition, ready for installation and use.
B141PW01 V0 LCD Screen Delivery & Customs Service :
Worldwide Shipping: Our shipping service extends globally, ensuring that customers worldwide can access our products with ease.
Thorough Testing: Prior to shipment, each item undergoes meticulous inspection to ensure both its appearance and functionality meet our stringent quality standards. This meticulous process guarantees that you receive a product of the highest quality.
90-Day Warranty: We stand behind the quality of our products. Therefore, we provide a 90-day warranty period, offering you peace of mind and assurance in your purchase.
Customs Duties: Please note that any taxes or customs duties imposed by the destination country are the responsibility of the buyer. We recommend checking with local authorities to understand any applicable charges.
Remote Area Surcharge: In instances where the delivery location is classified as a remote area, an additional surcharge may apply. This fee is to cover the additional costs associated with delivering to such locations and is borne by the buyer.
Express Shipping Options: By default, we utilize DHL for express shipping. However, in cases of unforeseen circumstances such as force majeure events causing backlogs at warehouses, we reserve the right to select an alternative express courier service such as UPS, FedEx, or TNT to expedite delivery and ensure prompt receipt of your order.
B141PW01 V0 LCD Panel FAQ :
Q: Can I pay my order of B141PW01 V0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of B141PW01 V0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of B141PW01 V0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods B141PW01 V0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
